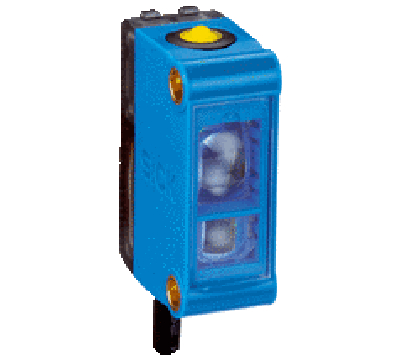

    Luminescence sensors SICK LUTM

    Type:LUTM-UP81162P
    Part no.:1067295
    Features
    Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
    Sensing distance 12.5 mm 1)
    Housing design (light emission) Small
    Working range 8 mm ... 20 mm
    Light source LED, UV 2)
    Wave length 370 nm
    Light emission Long side
    Light spot size 2 mm x 2.5 mm 3)
    Light spot direction Vertical
    Receiving range 450 nm ... 750 nm
    Adjustment Teach-in button
    Teach-in mode 2-point teach-in static/dynamic
    Output function Light/dark switching 4)
    • 1) From front edge of lens.
    • 2) Average service life: 100,000 h at TU = +25 °C.
    • 3) At sensing distance.
    • 4) L/D switching via teach-in.

    Mechanics/electronics
    Supply voltage 12 V DC ... 24 V DC 1)
    Ripple ≤ 5 Vpp 2)
    Current consumption ≤ 50 mA 3)
    Switching frequency 6 kHz 4)
    Response time 80 µs 5)
    Jitter 40 µs
    Switching output PNP
    Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
    Switching mode Light/dark switching
    Output current Imax. < 100 mA 6)
    Input, teach-in (ET)

    PNP

    Teach: U = 10 V ... < UV

    Run: U < 2 V

    Connection type Cable with M12 male connector, 4-pin, 0.2 m
    Protection class III
    Circuit protection

    UV connections, reverse polarity protected

    Output Q short-circuit protected

    Interference pulse suppression

    Enclosure rating IP67
    Weight 70 g
    Housing material Plastic, ABS
    • 1) Limit values: DC 12 V (–10 %) ... DC 24 V (+20 %). Operation in short-circuit protected network max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) With light/dark ratio 1:1.
    • 5) Signal transit time with resistive load.
    • 6) At supply voltage > 24 V, Imax = 30 mA. Imax is consumption count of all Qn.

    Ambient data
    Ambient operating temperature –10 °C ... +55 °C
    Ambient temperature, storage –20 °C ... +75 °C
    Shock load According to IEC 60068
    UL File No. NRKH.E348498 & NRKH7.E348498


    Classifications
    ECl@ss 5.0 27270908
    ECl@ss 5.1.4 27270908
    ECl@ss 6.0 27270908
    ECl@ss 6.2 27270908
    ECl@ss 7.0 27270908
    ECl@ss 8.0 27270908
    ECl@ss 8.1 27270908
    ECl@ss 9.0 27270908
    ECl@ss 10.0 27270908
    ECl@ss 11.0 27270908
    ETIM 5.0 EC001822
    ETIM 6.0 EC001822
    ETIM 7.0 EC001822
    ETIM 8.0 EC001822
    UNSPSC 16.0901 39121528
