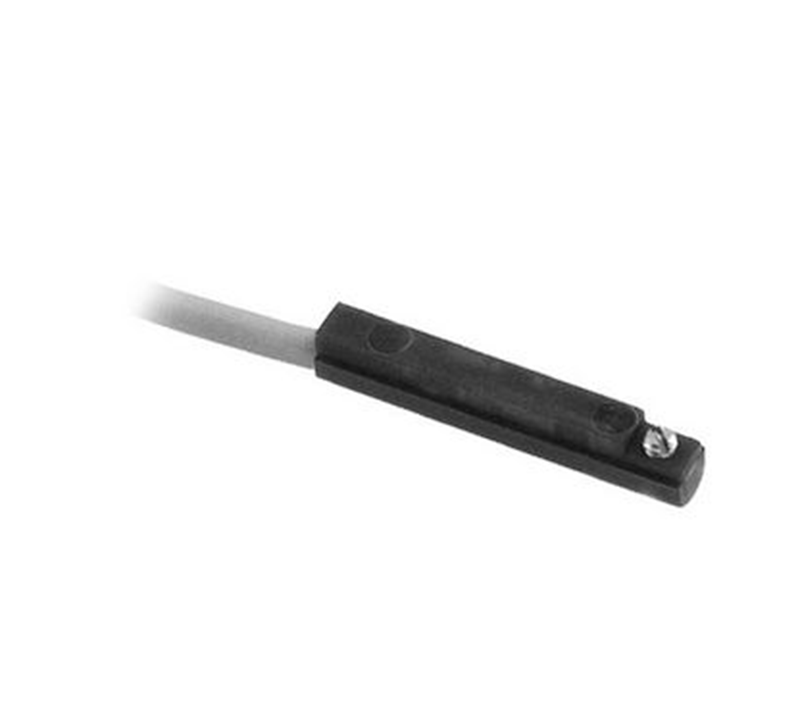

Magnetic cylinder sensors Baumer MZCK 03P1011/KS35D
| General data |
| Type |
magneto-resistive |
| Version |
C-slots |
| Nominal operation point |
4 mT |
| Difference ON-OFF |
0,5 ... 1,5 mT |
| Output indicator |
LED yellow |
| Electrical data |
| Switching frequency |
< 200 kHz |
| Response time / release time |
< 0,0025 ms |
| Output circuit |
PNP |
| Current consumption max. (no load) |
12 mA |
| Output current |
< 200 mA |
| Voltage supply range +Vs |
6 ... 30 VDC |
| Output function |
normally open (NO) |
| Voltage drop Vd |
< 1 VDC |
| Reverse polarity protection |
yes |
| Short circuit protection |
yes |
| Mechanical data |
| Cable output |
axial |
| Connection types |
flylead connector PUR M8, L=300 mm |
| Type |
rectangular |
| Depth |
23 mm |
| Width / diameter |
3,7 mm |
| Height / length |
4,6 mm |
| Housing material |
PA66 |
| Ambient conditions |
| Operating temperature |
-40 ... +70 °C |
| Protection class |
IP 67 |
