    Sensor

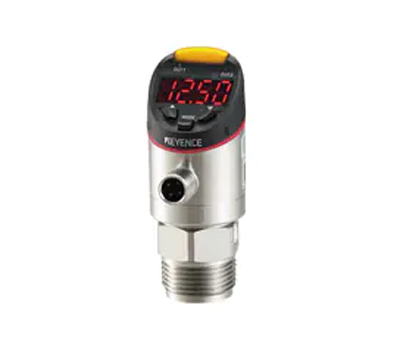

    Main Unit Compound-pressure Type 100 kPa

    Model No. : Keyence GP-M001

    Specifications

    Model

    GP-M001

    Rated pressure

    -14.50 to +14.50 PSI
    (-100 to +100 kPa)

    Possible display range

    -17.40 to +17.40 PSI
    (-120.0 to +120.0 kPa)

    Zero-cut pressure value

    ±0.5% of F.S.

    Burst pressure

    217.5 PSI (1500 kPa)

    Display resolution

    kPa

    0.1

    MPa

    None

    PSI

    0.01

    bar

    0.001

    kgf/cm2

    Fluid type

    Gas or liquid that will not corrode the liquid contact part

    Type of pressure

    Gage pressure

    Precision

    ±1.0% of F.S. or less*1

    Repeatability

    ±0.3% of F.S. or less*2

    Temperature characteristics

    ±0.6% of F.S./10°C 50°F

    Connection port

    G3/4 (Changes to the R male 1/8, R male 1/4, R male 3/8, G female 1/4, NPT male 1/8, and NPT male 1/4 option adapters are available.)

    Box rotation angle

    Maximum 330°

    Medium temperature

    -20 to +100°C -4°F to +212°F (no freezing/condensation)*3

    Power voltage

    10-30 VDC, Ripple (P-P): 10% max, Class 2 or LPS

    Current consumption

    50 mA or less (when 24 V: 32 mA or less, when 12 V: 48 mA or less. Not including load)*4

    Display method

    4 column, digital LED, red/Vertical inversion display possible

    Operation display light

    Operation indicator (output 1) (orange), Operation indicator (output 2) (orange)

    Hysteresis

    During hysteresis mode: variable (Difference between switch-on point and switch-off point is hysteresis)
    During window mode: fixed (0.5% of F.S.)

    Response

    Control output

    Selectable from 3 to 5000 ms

    Analog output

    As above + 2 ms (90% response)

    Output

    Output 1 control output

    NPN/PNP open collector (Selectable), Max. 250 mA (30 V max)
    Main unit residual voltage 1 V max, N.O./N.C. selectable

    Output 2
    replacement type

    Control output

    Analog output

    4-20 mA, maximum load resistance 500 Ω (When the electric voltage is more than 20 V)*5

    Environmental resistance

    Enclosure rating

    IP67

    Pressure resistance

    400 kPa (4 bar)

    Ambient temperature

    -20 to +80 °C -4 to 176 °F (No freezing and no condensation)

    Relative humidity

    35 to 85 % RH (No condensation)

    Vibration resistance

    IEC60068-2-6 20 G (10 to 2000 Hz, 2 hours each in the X, Y, and Z axis)

    Shock resistance

    IEC60068-2-27 50G (11 ms, 3 times for each of X, Y and Z direction)

    Material
    properties

    Wetted part

    Pressure port: SUSXM7, Diaphragm pressure port: Al2O3 (Alumina), O ring: FKM

    Other parts

    Housing metal portion: SUS304, SUS303, Housing plastic portion: PPSU, Air hole: PTFE, nickel-plated brass.

    Applicable cable

    M12 connector 4 pin

    Weight

    Approx. 150 g

    *1 This is the value when considering linearity + hysteresis + repeatability in a stable environment of 23°C 73°F.
    *2 The repeatability, based on consistent conditions, is the variation in the value that will be displayed.
    *3 When the temperature of the piping exceeds 80°C 176°F, do not connect the cable.
    *4 Consumption current including output is 0.6 A and under.
    *5 The maximum load resistance R will be the values below in response to the electric voltage E. When 10-23V: R = {38 x (E-10) + 128} Ω When 23-30V: R = 622 Ω
