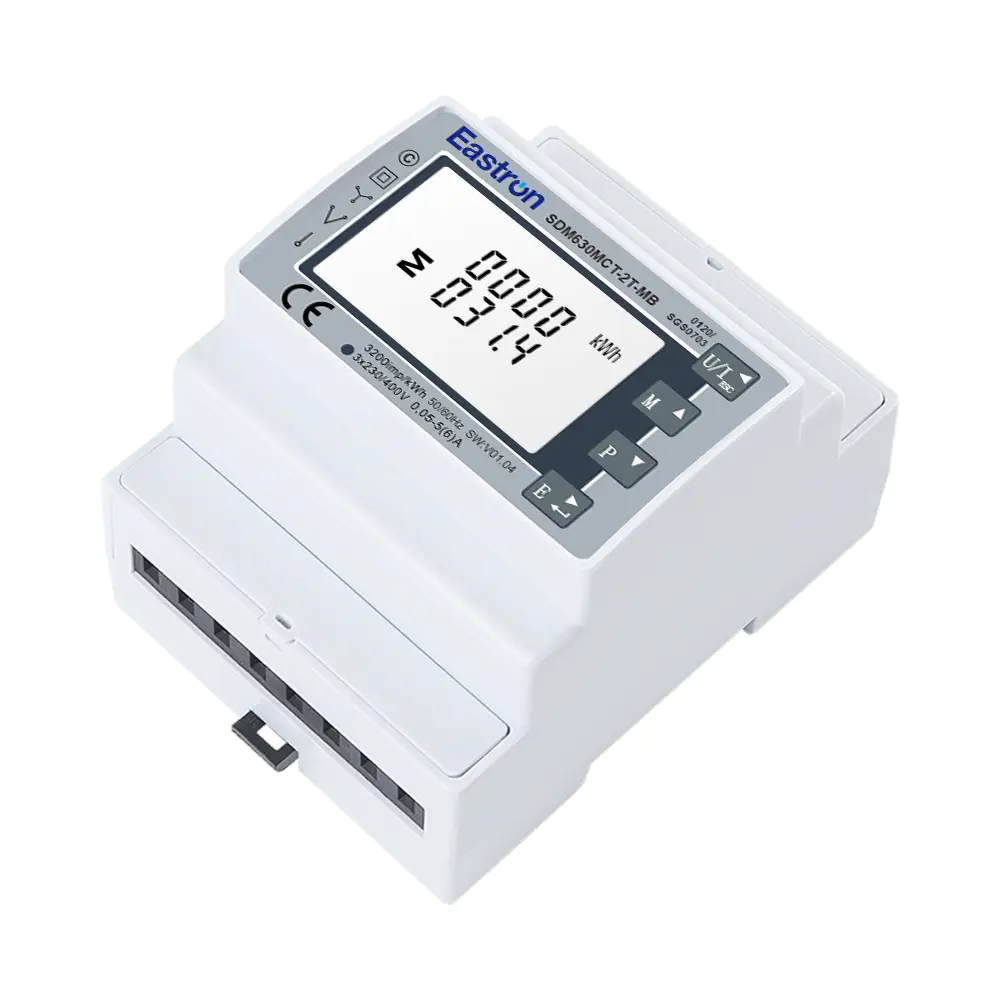

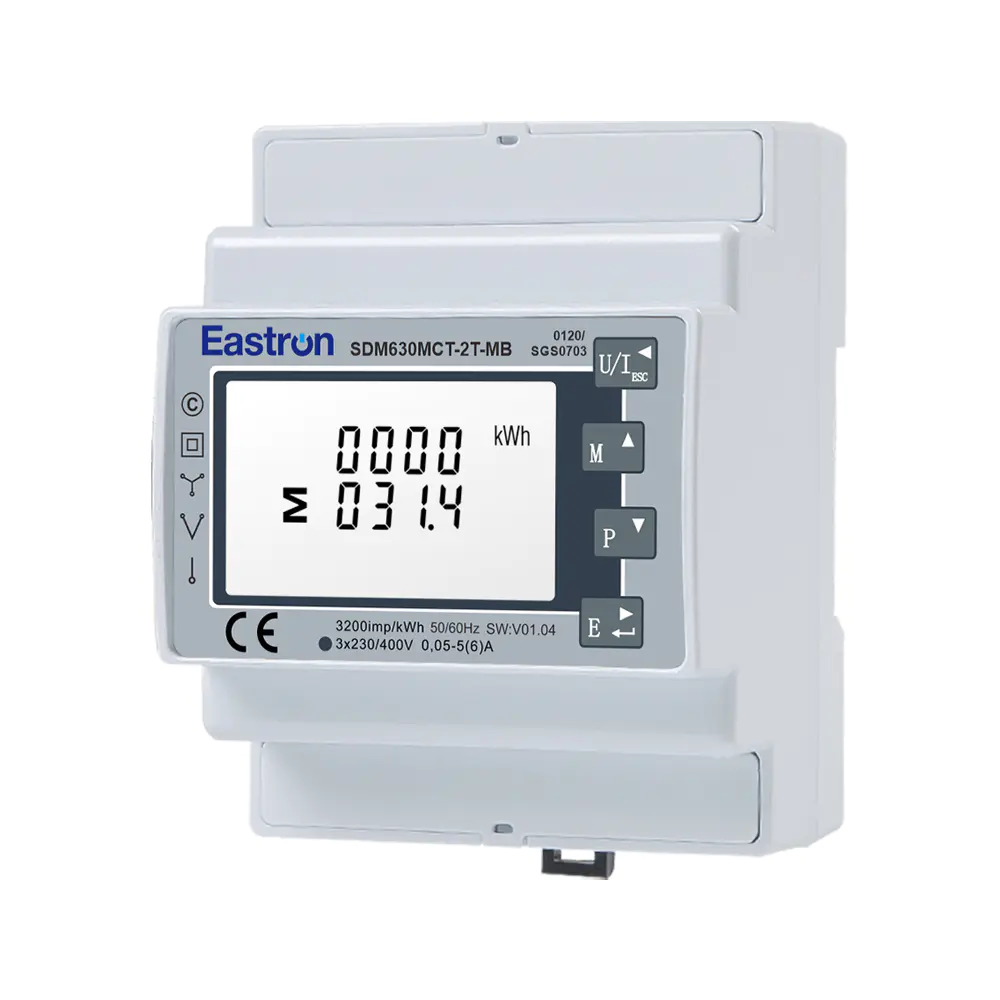

Mid Approved Ct Type Din Rail Three Phase Multi-function Modbus Tcp Meter Eastron SDM630MCT-TCP
- CT & PT operated
- Work with 3P4W/3P3W/1P2W
- 4 Module 72mm wide
- Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,etc.
- Bi-directional measurement
- Ethernet TCP communication
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS including harmonics on three phase AC system (3P, 3P+N) |
|
|
Measurement Accuracy |
Voltage |
±0.5% |
|
Current |
±0.5% |
|
|
Frequency |
±0.2% |
|
|
Power Factor |
±1% |
|
|
Active Power |
±1% |
|
|
Reactive Power |
±1% |
|
|
Apparent Power |
±1% |
|
|
Active Energy |
Class 0.5S IEC 62053-22, Class 1.0 IEC 62053-21 Class B and C EN50470-3:2022 |
|
|
Reactive Energy |
Class 2 IEC62053-23 |
|
|
Input & Output |
|||
|
Input |
Current
|
CT Secondary |
1A/5A |
|
CT Primary |
1-9999A |
||
|
Min Current |
0.25A |
||
|
Starting Current |
20mA |
||
|
Voltage |
Rated Voltage (Un) |
230V L-N / 120V L-N |
|
|
Operational Voltage |
80%~120% of Un |
||
|
Output |
SDM630MCT-TCP |
Ethernet Modbus TCP |
|
|
Ethernet Modbus TCP Communications |
|
|
Communication Address |
1~247 |
| IP |
192.168.1.200 |
|
Port |
502 |
|
Mask |
255.255.255.0 |
|
Gateway |
192.168.1.1 |
|
DHCP |
Off |
