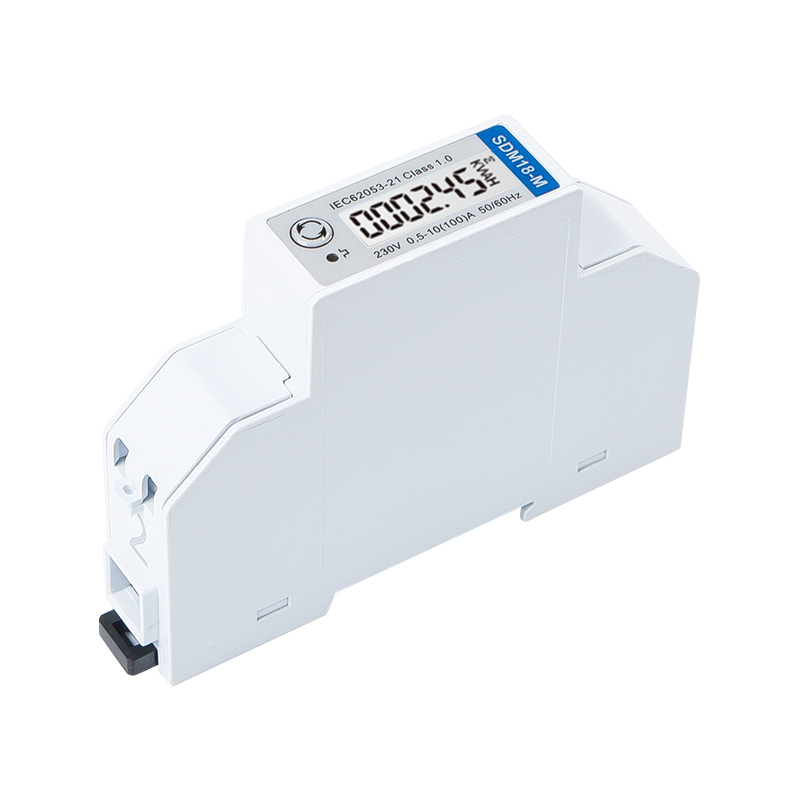

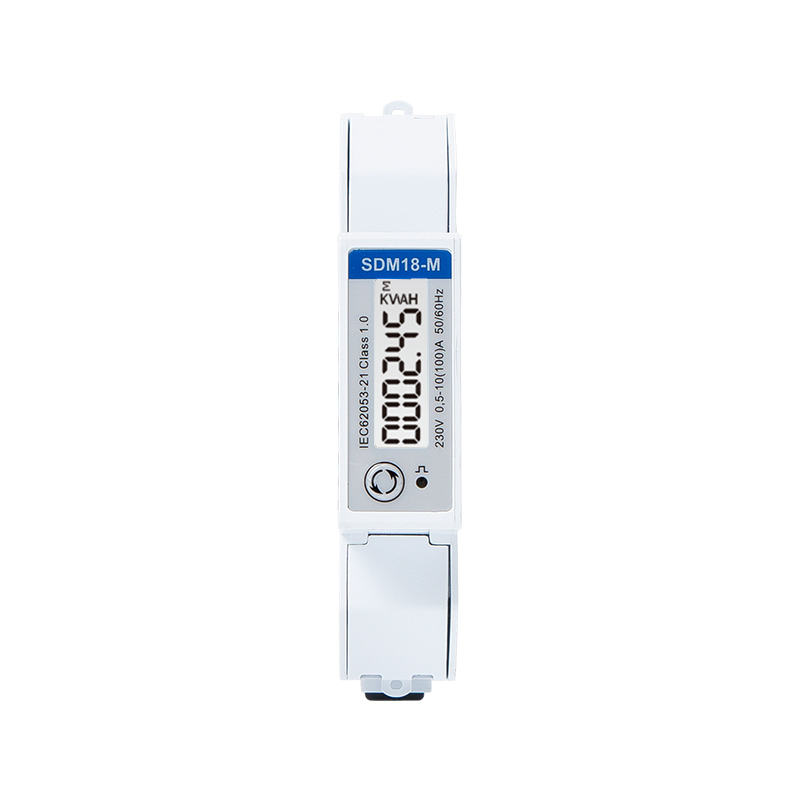

Mid Approved Single Phase 100a Din Rail Type Multi-function Ev Meter For Ev Charging Metering Eastron SDM18-M
- Multi-measurement: kWh,W, V, A, PF, Hz, dmd,etc.
- For 7kW AC EV Charging Piles
- RS485 Modbus comunication
- Bi-directional Measurement
- Max. 100A Direct Load
- 1 Module 18mm Width
- 1P2W
|
Electrical Characteristics |
||
|
Type of Measurement |
RMS on single phase AC system (1P2W) |
|
|
Measurement Accuracy |
Power |
1% of range maximum |
|
Active Energy |
IEC 62053-21 Class 1.0 / EN50470-1/3 Class B |
|
|
Reactive Energy |
IEC62053-23 Class 2 |
|
|
Frequency |
0.2% of mid-frequency |
|
|
Current |
0.5% of range maximum |
|
|
Voltage |
0.5% of range maximum |
|
|
Power Factor |
1% of unity (0.01) |
|
|
Input & Output |
||
|
Input-Current |
Rated Current |
10A |
|
Max Current |
100A |
|
|
Min Current |
0.5A |
|
|
Starting Current |
40mA |
|
|
Output |
SDM18-M |
RS485 Modbus |
|
SDM18-MB |
Mbus |
|
|
Modbus Communications |
|
|
Interface Standard and Protocol |
RS485 and MODBUS RTU |
|
Communication Address |
1~247 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
1200bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
|
M-Bus Communications |
|
|
Interface Standard and Protocol |
M-bus EN13757-3 |
|
Communication Address |
1~250 |
|
Transmission Distance |
1000m Maximum |
|
Baud Rate |
300bps~9600bps |
|
Parity |
None (default), Odd, Even |
|
Stop Bits |
1 or 2 |
