    Mid Range Distance Sensors SICK Dx35 / DT35

    Type:DT35-B15551
    Part No.:1057651

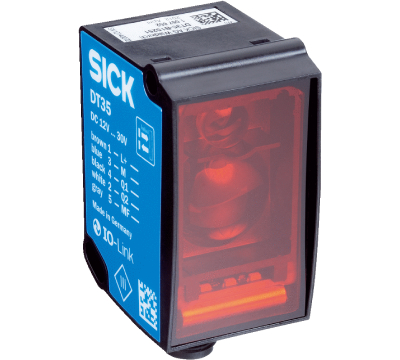

    Mid Range Distance Sensors SICK Dx35 / DT35 DT35-B15551

    Mechanics/electronics
    Supply voltage Vs DC 12 V ... 30 V 1) 2)
    Ripple ≤ 5 Vpp 3)
    Power consumption ≤ 1.7 W 4)
    Initialization time ≤ 500 ms
    Warm-up time ≤ 20 min
    Housing material Plastic (ABS/PC)
    Window material Plastic (PMMA)
    Connection type Male connector, M12, 5-pin
    Indication LEDs
    Weight 65 g
    Dimensions (W x H x D) 32 mm x 58.67 mm x 42.7 mm
    Enclosure rating

    IP65

    IP67

    Protection class III
    • 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
    • 2) When using IO-Link output Vs > 18 V. When using analog voltage output Vs > 13 V.
    • 3) May not fall short of or exceed VS tolerances.
    • 4) Without load, at +20 °C.

    Performance
    Measuring range

    50 mm ... 12,000 mm, 90 % remission 1) 2)

    50 mm ... 5,300 mm, 18 % remission

    50 mm ... 3,100 mm, 6 % remission

    Target Natural objects
    Resolution 0.1 mm
    Repeatability ≥ 0.5 mm 2) 3) 4)
    Accuracy Typ. ± 10 mm 4)
    Response time 4.5 ms ... 192.5 ms, 4.5 ms / 12.5 ms / 24.5 ms / 48.5 ms / 192.5 ms 5) 6)
    Switching frequency 166 Hz/50 Hz/25 Hz/12 Hz/3 Hz 5) 6)
    Output time 2 ms ... 64 ms, 2 ms/4 ms/8 ms/16 ms/64 ms 5) 7)
    Light source Laser, red 8)
    visible red light
    Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014)
    Typ. light spot size (distance) 15 mm x 15 mm (at 2 m)
    Additional function Set speed: Super Fast ... Super Slow, teach-in of analog output and invertible analog output, Output Q2 adaptable: Current output / Voltage output / Digital output, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of digital output and digital output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default
    Average laser service life (at 25 °C) 100,000 h
    • 1) For speed setting Slow.
    • 2) See repeatability characteristic lines.
    • 3) Equivalent to 1 σ.
    • 4) 6 % ... 90 % remission.
    • 5) Depending on the set speed: Super Fast ... Super Slow.
    • 6) Lateral entry of the object into the measuring range.
    • 7) Continuous change of distance in measuring range.
    • 8) Wavelength: 658 nm; max. output: 250 mW; pulse duration: 3 ns; duty cycle: 1/500.

    Interfaces
    IO-Link ✔ , IO-Link V1.1
    Function Process data, parameterization, diagnosis, data storage
    Data transmission rate 38.4 kbit/s
    Digital output
    Number 1 ... 2 1) 2)
    Type Push-pull: PNP/NPN
    Function Output Q2 adaptable: Current output / Voltage output / Digital output
    Maximum output current IA ≤ 100 mA
    Analog output
    Number 1
    Type Current output / voltage output
    Function Output Q2 adaptable: Current output / Voltage output / Digital output
    Current 4 mA ... 20 mA, ≤ 450 Ω
    Voltage 0 V ... 10 V, ≥ 50 Ω
    Resolution 12 bit
    Multifunctional input (MF) 1 x 3)
    Hysteresis 0 mm ... 11,950 mm 4)
    • 1) Output Q short-circuit protected.
    • 2) Voltage drop < 3 V.
    • 3) Response time ≤ 60 ms.
    • 4) Configurable via IO-Link.

    Ambient data
    Ambient temperature, operation –30 °C ... +55 °C, Uv ≤ 24 V
    Ambient temperature, storage –40 °C ... +75 °C
    Max. rel. humidity (not condensing) ≤ 95 %
    Vibration resistance EN 60068-2-6, EN 60068-2-64
    Shock resistance EN 60068-2-27


    Classifications
    ECl@ss 5.027270801
    ECl@ss 5.1.427270801
    ECl@ss 6.027270801
    ECl@ss 6.227270801
    ECl@ss 7.027270801
    ECl@ss 8.027270801
    ECl@ss 8.127270801
    ECl@ss 9.027270801
    ECl@ss 10.027270801
    ECl@ss 11.027270801
    ETIM 5.0EC001825
    ETIM 6.0EC001825
    ETIM 7.0EC001825
    ETIM 8.0EC001825
    UNSPSC 16.090141111613
