    Mid Range Distance Sensors SICK Dx50 / DL50 Hi

    Type:DL50-N2225
    Part No.:1048419

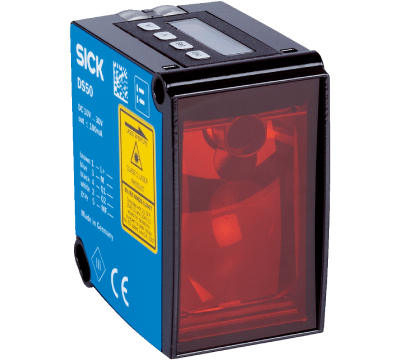

    Mid Range Distance Sensors SICK Dx50 / DL50 Hi DL50-N2225

    Mechanics/electronics
    Supply voltage Vs DC 10 V ... 30 V 1)
    Ripple ≤ 5 Vpp 2)
    Power consumption ≤ 2.1 W 3)
    Initialization time ≤ 250 ms
    Warm-up time ≤ 15 min
    Housing material Metal (zinc diecast)
    Window material Plastic (PMMA)
    Connection type Male connector, M12, 8-pin
    Indication LC display, 2 x LED
    Weight 200 g
    Dimensions (W x H x D) 36.1 mm x 62.7 mm x 57.7 mm
    Enclosure rating IP65
    Protection class III
    • 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
    • 2) May not fall short of or exceed VS tolerances.
    • 3) Without load.

    Performance
    Measuring range 200 mm ... 50,000 mm, on “diamond grade” reflective tape
    Target Reflector
    Resolution 0.1 mm
    Repeatability ≥ 0.25 mm 1) 2) 3)
    Accuracy ± 3 mm 4)
    Response time 10 ms ... 160 ms, 10 ms / 40 ms / 160 ms 2) 5)
    Output time 2.5 ms 6) 7)
    Light source Laser, red
    visible red light
    Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) 8)
    Typ. light spot size (distance) 15 mm x 15 mm (10 m)
    Additional function Set moving average fast/medium/slow, switching mode: distance to object (DtO), teach-in, scaling and inversion of digital output, set hysteresis, Multifunctional input and output: Laser off, external teach, digital output 2, deactivated, Adjustable resolution of the SSI distance output: 0.0625 mm / 0.1 mm / 0.125 mm / 1 mm, Unique measurement value, crosstalk safety, switch-off display, reset to factory default, lock user interface
    Average laser service life (at 25 °C) 100,000 h
    • 1) Equivalent to 1 σ.
    • 2) Dependent on the averaging setting: fast/medium/slow.
    • 3) Typical value.
    • 4) 200 mm ... 4,000 mm: ≤ ± 5 mm.
    • 5) Lateral entry of the object into the measuring range.
    • 6) For baud rate 115,200 bps.
    • 7) Continuous change of distance in measuring range.
    • 8) Wavelength: 658 nm; max. output: 80 mW; pulse duration: 2.5 ns; duty cycle: 1/240.

    Interfaces
    Serial ✔ , RS-422
    Digital output
    Number 1 ... 2 1) 2)
    Type NPN
    Function Dependent on the set function MF: digital output 2 / laser off, external teach
    Maximum output current IA ≤ 100 mA
    Multifunctional input (MF) − / 1 x 3) 4) 5)
    Hysteresis 1 mm ... 1,000 mm
    • 1) Output Q short-circuit protected.
    • 2) NPN: HIGH = < 2.5 V / LOW = VS.
    • 3) Dependent on the set function MF: digital output 2 / laser off, external teach.
    • 4) Response time ≤ 60 ms.
    • 5) NPN: HIGH = ≤ 2.5 V / LOW = VS.

    Ambient data
    Ambient temperature, operation

    –30 °C ... +65 °C

    –30 °C ... +80 °C, operation with 2 cooling plates

    –30 °C ... +140 °C, operation with 2 cooling plates and protection filter

    Ambient temperature, storage –40 °C ... +75 °C
    Max. rel. humidity (not condensing) ≤ 95 %
    Typ. Ambient light immunity 40,000 lx
    Vibration resistance EN 60068-2-6, EN 60068-2-64
    Shock resistance EN 60068-2-27

    Classifications
    ECl@ss 5.0 27270801
    ECl@ss 5.1.4 27270801
    ECl@ss 6.0 27270801
    ECl@ss 6.2 27270801
    ECl@ss 7.0 27270801
    ECl@ss 8.0 27270801
    ECl@ss 8.1 27270801
    ECl@ss 9.0 27270801
    ECl@ss 10.0 27270801
    ECl@ss 11.0 27270801
    ETIM 5.0 EC001825
    ETIM 6.0 EC001825
    ETIM 7.0 EC001825
    ETIM 8.0 EC001825
    UNSPSC 16.0901 41111613
