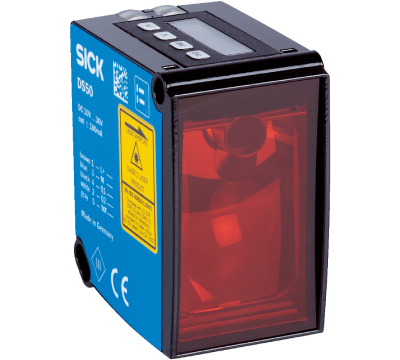

Mid Range Distance Sensors SICK Dx50 / DT50
Type:DT50-P1113
Part No.:1044369
Part No.:1044369
Mid Range Distance Sensors SICK Dx50 / DT50 DT50-P1113
Mechanics/electronics
Performance
Interfaces
Ambient data
Classifications
Mechanics/electronics
| Supply voltage Vs | DC 10 V ... 30 V 1) 2) |
| Ripple | ≤ 5 Vpp 3) |
| Power consumption | ≤ 2.1 W 4) |
| Initialization time | ≤ 250 ms |
| Warm-up time | ≤ 15 min |
| Housing material | Metal (zinc diecast) |
| Window material | Plastic (PMMA) |
| Connection type | Male connector, M12, 5-pin |
| Indication | LC display, 2 x LED |
| Weight | 200 g |
| Dimensions (W x H x D) | 36.1 mm x 62.7 mm x 57.7 mm |
| Enclosure rating | IP65 |
| Protection class | III |
- 1) Limit values, reverse-polarity protected, operation in short-circuit protected network: max. 8 A.
- 2) For DT50-xxxx4: VS > 15 V.
- 3) May not fall short of or exceed VS tolerances.
- 4) Without load.
Performance
| Measuring range |
200 mm ... 10,000 mm, 90 % remission 200 mm ... 6,500 mm, 18 % remission 200 mm ... 4,000 mm, 6 % remission |
| Target | Natural objects |
| Resolution | 1 mm |
| Repeatability | ≥ 2.5 mm 1) 2) 3) |
| Accuracy | ± 10 mm 4) |
| Response time | 20 ms ... 30 ms, 20 ms / 30 ms 3) 5) |
| Output time | ≥ 4 ms 6) |
| Light source | Laser, red visible red light |
| Laser class | 2 (IEC 60825-1:2014, EN 60825-1:2014) 7) |
| Typ. light spot size (distance) | 15 mm x 15 mm (10 m) |
| Additional function | Set moving average: fast/slow, switching mode: distance to object (DtO), teach-in, scaling and inversion of digital output, set hysteresis, teach-in, scaling and inversion of analog output, Multifunctional input: laser off / external teach / deactivated, switch-off display, reset to factory default, lock user interface |
| Average laser service life (at 25 °C) | 100,000 h |
Interfaces
| Digital output | |
| Number | 1 1) 2) |
| Type | PNP |
| Maximum output current IA | ≤ 100 mA |
- 1) Equivalent to 1 σ.
- 2) 6 % ... 90 % remission.
- 3) Dependent on the averaging setting: fast/slow.
- 4) 90 % remission.
- 5) Lateral entry of the object into the measuring range.
- 6) Continuous change of distance in measuring range.
- 7) Wavelength: 658 nm; max. output: 180 mW; pulse duration: 5 ns; duty cycle: 1/200.
Ambient data
| Ambient temperature, operation |
–30 °C ... +65 °C –30 °C ... +80 °C, operation with 2 cooling plates –30 °C ... +140 °C, operation with 2 cooling plates and protection filter |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Max. rel. humidity (not condensing) | ≤ 95 % |
| Typ. Ambient light immunity | 40,000 lx |
| Vibration resistance | EN 60068-2-6, EN 60068-2-64 |
| Shock resistance | EN 60068-2-27 |
Classifications
| ECl@ss 5.0 | 27270801 |
| ECl@ss 5.1.4 | 27270801 |
| ECl@ss 6.0 | 27270801 |
| ECl@ss 6.2 | 27270801 |
| ECl@ss 7.0 | 27270801 |
| ECl@ss 8.0 | 27270801 |
| ECl@ss 8.1 | 27270801 |
| ECl@ss 9.0 | 27270801 |
| ECl@ss 10.0 | 27270801 |
| ECl@ss 11.0 | 27270801 |
| ETIM 5.0 | EC001825 |
| ETIM 6.0 | EC001825 |
| ETIM 7.0 | EC001825 |
| ETIM 8.0 | EC001825 |
| UNSPSC 16.0901 | 41111613 |
