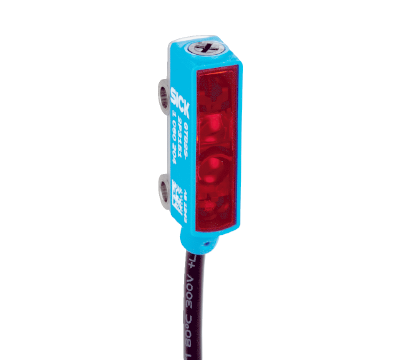

Miniature Photoelectric Sensors SICK G2S GTB2S-N1451
Features
Mechanics/electronics
Safety-related parameters
Classifications
Features
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 7.7 mm x 27.5 mm x 13.5 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 2 mm ... 120 mm 1) |
| Sensing range | 25 mm ... 90 mm 2) |
| Type of light | Visible red light |
| Light source | PinPoint LED 3) |
| Light spot size (distance) | Ø 3.5 mm (50 mm) |
| Wave length | 640 nm |
| Adjustment | Potentiometer, 3 turns |
- 1) Object with 90 % reflectance (referred to standard white, DIN 5033).
- 2) Object with 6 % remission.
- 3) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 20 mA 3) |
| Switching output | NPN |
| Switching mode | Light switching |
| Output current Imax. | ≤ 50 mA |
| Response time | < 0.6 ms 4) |
| Switching frequency | 800 Hz 5) |
| Connection type | Cable, 3-wire, 2 m 6) |
| Cable material | PVC |
| Cable diameter | Ø 3 mm |
| Circuit protection |
A 7) C 8) D 9) |
| Weight | 34.2 g |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –25 °C ... +50 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 |
- 1) Limit values when operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) Signal transit time with resistive load.
- 5) With light/dark ratio 1:1.
- 6) Do not bend below 0 °C.
- 7) A = VS connections reverse-polarity protected.
- 8) C = interference suppression.
- 9) D = outputs overcurrent and short-circuit protected.
Safety-related parameters
| MTTFD | 3,378 years |
| DCavg | 0 % |
Classifications
| ECl@ss 5.0 | 27270904 |
| ECl@ss 5.1.4 | 27270904 |
| ECl@ss 6.0 | 27270904 |
| ECl@ss 6.2 | 27270904 |
| ECl@ss 7.0 | 27270904 |
| ECl@ss 8.0 | 27270904 |
| ECl@ss 8.1 | 27270904 |
| ECl@ss 9.0 | 27270904 |
| ECl@ss 10.0 | 27270904 |
| ECl@ss 11.0 | 27270904 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
