    Miniature Photoelectric Sensors SICK G6

    Type:GSE6-N1212
    Part No.:1060795

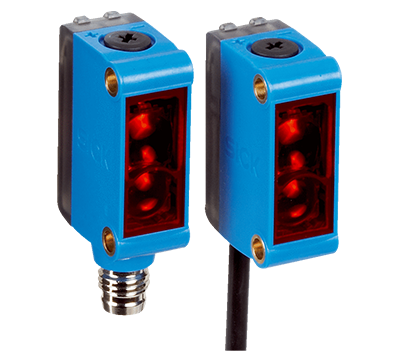

    Miniature Photoelectric Sensors SICK G6 GSE6-N1212

    Features
    Device type Photoelectric sensors
    Functional principle Through-beam photoelectric sensor
    Sensing range max. 0 m ... 15 m
    Sensing range 0 m ... 10 m
    Polarisation filters No
    Emitted beam
    Light source PinPoint LED 1)
    Type of light Visible red light
    Light spot size (distance) Ø 375 mm (12 m)
    Key LED figures
    Wave length 650 nm
    Adjustment Potentiometer, 270°
    • 1) Average service life: 100,000 h at TU = +25 °C.

    Electrical data
    Supply voltage UB 10 V DC ... 30 V DC 1)
    Ripple ± 10 % 2)
    Power consumption 30 mA 3)
    Protection class III
    Digital output
    Type NPN
    Signal voltage PNP HIGH/LOW VS - (≤ 3 V) / approx. 0 V
    Output current Imax. ≤ 100 mA 4)
    Response time < 500 µs 5)
    Switching frequency 1,000 Hz 6)
    Switching mode Light/dark switching
    Switching mode selector Selectable via light/dark selector
    Circuit protection

    A 7)

    B 8)

    D 9)

    • 1) Limit values when operated in short-circuit protected network: max. 8 A.
    • 2) May not exceed or fall below Uv tolerances.
    • 3) Without load.
    • 4) At Uv > 24 V, IA max. = 50 mA.
    • 5) Signal transit time with resistive load.
    • 6) With light/dark ratio 1:1.
    • 7) A = VS connections reverse-polarity protected.
    • 8) B = inputs and output reverse-polarity protected.
    • 9) D = outputs overcurrent and short-circuit protected.

    Mechanical data
    Housing Rectangular
    Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
    Connection Cable, 3-wire, 2 m 1)
    Connection detail
    Conductor size 0.14 mm²
    Length of cable 2 m
    Material
    Housing Plastic, ABS/PC
    Front screen Plastic, PMMA
    Cable PVC
    Weight 170 g
    Items supplied Stainless steel mounting bracket (1.4301/304) BEF-W100-A
    • 1) Do not bend below 0 °C.

    Ambient data
    Enclosure rating IP67
    Ambient operating temperature –25 °C ... +55 °C 1)
    Ambient temperature, storage –40 °C ... +70 °C
    UL File No. NRKH.E348498 & NRKH7.E348498
    • 1) Temperature stability following adjustment +/-10 °C.

    Classifications
    ECl@ss 5.0 27270901
    ECl@ss 5.1.4 27270901
    ECl@ss 6.0 27270901
    ECl@ss 6.2 27270901
    ECl@ss 7.0 27270901
    ECl@ss 8.0 27270901
    ECl@ss 8.1 27270901
    ECl@ss 9.0 27270901
    ECl@ss 10.0 27270901
    ECl@ss 11.0 27270901
    ETIM 5.0 EC002716
    ETIM 6.0 EC002716
    ETIM 7.0 EC002716
    ETIM 8.0 EC002716
    UNSPSC 16.0901 39121528
