Servo Motor, PLC& HMI

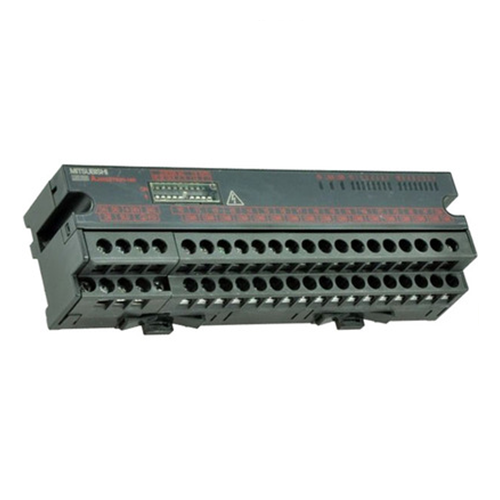

Mitsubishi CC Link Module AJ65SBTB2N-16R
FA-MOD PLC: Digital Output Module
| Series |
CC-LINK |
| Type |
REMOTE RELAY OUTPUT |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Occupied Stations |
1 |
| Integrated Digital Outputs |
16 |
| Output Type |
RELAY |
| Rated Load Voltage (VAC) |
240 |
| Rated Load Voltage (VDC) |
24 |
| Wiring |
SCREW |
| Int. Current Consumption (A) |
0,12 |
Product Dimensions & Weight
| Width (mm) |
179 |
| Height (mm) |
50 |
| Depth (mm) |
40 |
| Weight (kg) |
0,35 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| UKCA |
COMPLIANT |
Product Packaging
| Cardboard (g) |
38 |
| Other paper (g) |
9 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
3 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
Environmental
| REACH Limit Exceeded |
YES |
| REACH Substance CAS Number |
7439-92-1, 2451-62-9 |
| Dangerous Goods Regulations |
NO |
| RoHS Compliance |
COMPLIANT |
| WEEE |
B2B |
