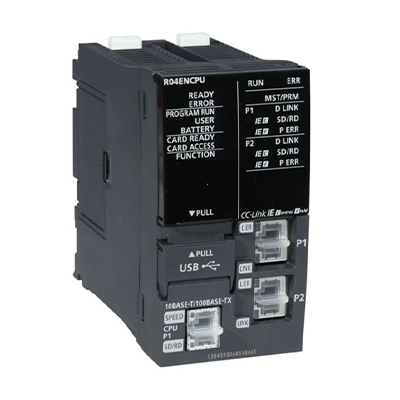

FA-MOD PLC: CPU Module
| Series |
MELSEC IQ-R SERIES |
| Type |
STANDARD CPU (WITH CC-LINK IE) |
| Program Memory |
160K |
| Program Memory Unit |
STEPS |
| Local I/O Points |
4096 |
| Local + Remote I/O Points |
4096 |
| Cycle Time LD (ns) |
0,98 |
| Cycle Time MOV (ns) |
1,96 |
| USB |
1 |
| Ethernet Port |
1 |
| Buffer Battery |
YES |
| Int. Current Consumption (A) |
1,49 |
Product Dimensions & Weight
| Width (mm) |
56 |
| Height (mm) |
106 |
| Depth (mm) |
110 |
| Weight (kg) |
0,4 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK,RINA |
| UKCA |
COMPLIANT |
