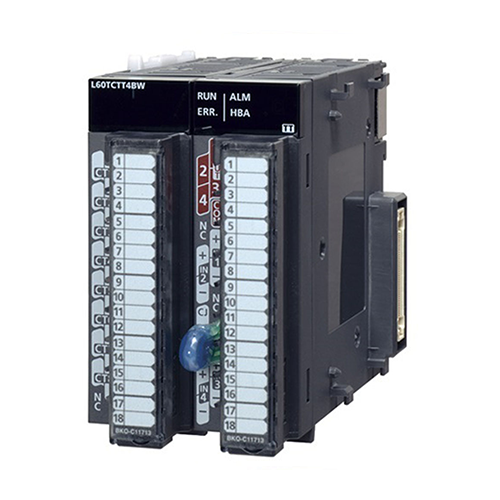

Mitsubishi MELSEC-L Temperature Control Modules L60TCTT4BW-CM
- Mitsubishi MELSEC-L CPU PLC module
FA-MOD PLC: Temperature Module
| Series |
MELSEC-L SERIES |
| Type |
TEMPERATURE CONTROL |
| Occupied I/O Points on PLC |
16 |
| Integrated Analogue Inputs |
4 |
| Input Type |
THERMOCOUPLE |
| Applicable Thermocouple Type |
K, J, E, B, L, N, PLII, R, U, T, S |
| Int. Current Consumption (A) |
0,33 |
Product Dimensions & Weight
| Width (mm) |
57 |
| Height (mm) |
90 |
| Depth (mm) |
117 |
| Weight (kg) |
0,33 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| UKCA |
COMPLIANT |
Product Packaging
| Cardboard (g) |
115 |
| Other paper (g) |
1 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
335 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
Environmental
| REACH Limit Exceeded |
YES |
| REACH Substance CAS Number |
7439-92-1, 1317-36-8, 1303-86-2 |
| Dangerous Goods Regulations |
NO |
| RoHS Compliance |
COMPLIANT |
| WEEE |
B2B |
