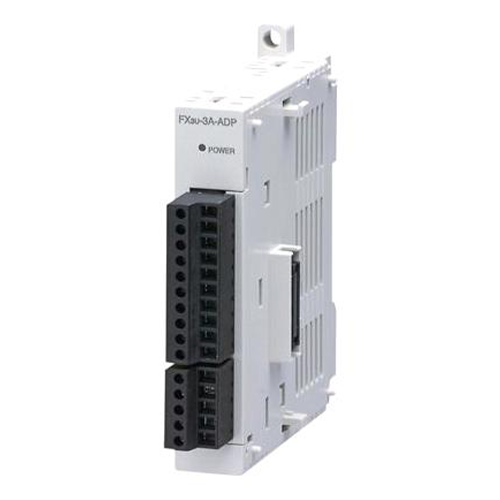

FA-COM PLC: Analogue I/O Module
| Series |
MELSEC-F SERIES |
| Type |
FX3U |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Integrated Analogue Inputs |
2 |
| Integrated Analogue Outputs |
1 |
| Input Voltage Range (V) |
0-10 |
| Input Current Range (mA) |
4-20 |
| Output Voltage Range (V) |
0-10 |
| Output Current Range (mA) |
4-20 |
| Min. Ambient Temperature (°C) |
0 |
| Max. Ambient Temperature (°C) |
55 |
Product Dimensions & Weight
| Width (mm) |
17,6 |
| Height (mm) |
90 |
| Depth (mm) |
89,5 |
| Weight (kg) |
0,1 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| UKCA |
COMPLIANT |
