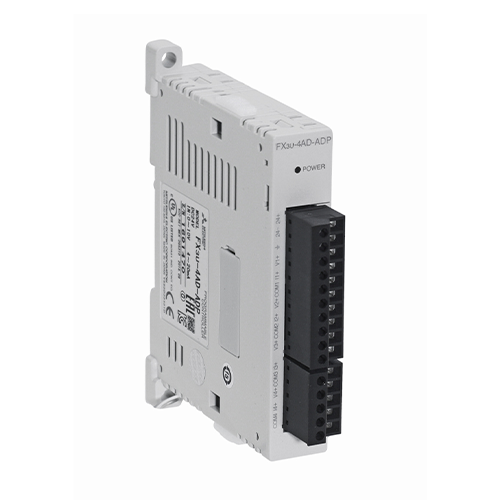

Mitsubishi PLC Communication module FX3U-4AD-ADP
- Mitsubishi PLC Module FX3U/FX3UC
FA-COM PLC: Analogue I/O Module
| Series | MELSEC-F SERIES |
|---|---|
| Type | FX3U |
| Power Supply (V) | 24 |
| Current Type | DC |
| Integrated Analogue Inputs | 4 |
| Input Voltage Range (V) | 0-10 |
| Input Current Range (mA) | 4-20 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
Product Dimensions & Weight
| Width (mm) | 17,6 |
|---|---|
| Height (mm) | 90 |
| Depth (mm) | 89,5 |
| Weight (kg) | 0,1 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA | COMPLIANT |
