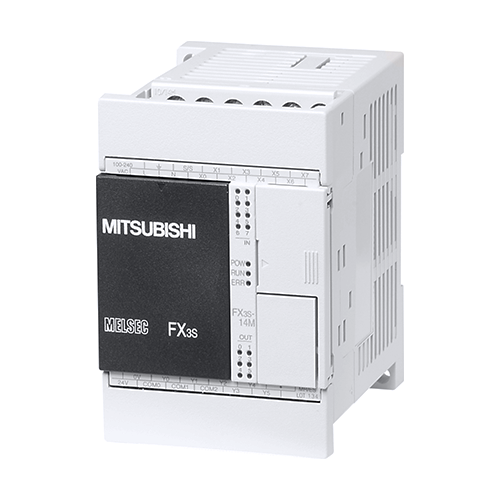

FA-COM PLC: Main Unit
| Type | FX3S |
|---|
| Power Supply (V) | 24 |
|---|
| Current Type | DC |
|---|
| Program Memory | 16K STEPS |
|---|
| Program Memory Unit | EEPROM |
|---|
| Integrated Digital Inputs | 8 |
|---|
| Integrated Digital Outputs | 6 |
|---|
| Output Type | TRANSISTOR |
|---|
| Output Logic | SINK |
|---|
| Local I/O Points | 30 |
|---|
| Local + Remote I/O Points | 30 |
|---|
| Expandable | NO |
|---|
| Cycle Time LD (ns) | 210 |
|---|
| Cycle Time MOV (ns) | 500 |
|---|
| USB | 1 |
|---|
| RS-422 | 1 |
|---|
| Power Consumption (W) | 6,5 |
|---|
| Buffer Battery | NO |
|---|
| Protection Class | IP10 |
|---|
| Min. Ambient Temperature (°C) | 0 |
|---|
| Max. Ambient Temperature (°C) | 55 |
|---|
| Series | MELSEC-F SERIES |
|---|
Product Dimensions & Weight
| Width (mm) | 60 |
|---|
| Height (mm) | 90 |
|---|
| Depth (mm) | 49 |
|---|
| Weight (kg) | 0,22 |
|---|
Conformity
| CE | COMPLIANT |
|---|
| UL/cUL | COMPLIANT |
|---|
| EAC | COMPLIANT |
|---|
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
|---|
| UKCA | COMPLIANT |
|---|
