Servo Motor, PLC& HMI

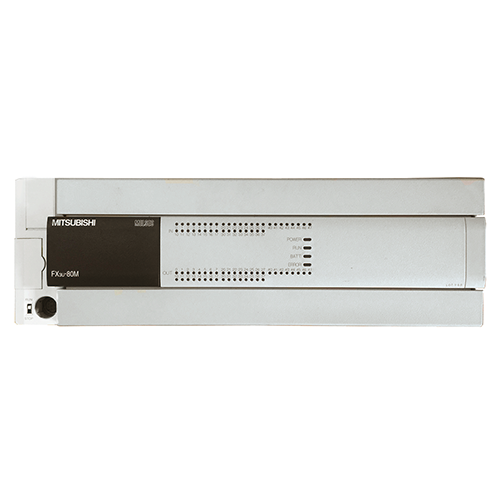

Mitsubishi PLC Controller Module FX3U-80MT-ES/A
- Mitsubishi PLC Module FX3U/FX3UC
FA-COM PLC: Main Unit
| Type | FX3U |
|---|
| Power Supply (V) | 24 |
|---|
| Current Type | DC |
|---|
| Program Memory | 64K STEPS |
|---|
| Program Memory Unit | RAM |
|---|
| Integrated Digital Inputs | 40 |
|---|
| Integrated Digital Outputs | 40 |
|---|
| Output Type | TRANSISTOR |
|---|
| Output Logic | SINK |
|---|
| Local I/O Points | 256 |
|---|
| Local + Remote I/O Points | 384 |
|---|
| Expandable | YES |
|---|
| Cycle Time LD (ns) | 65 |
|---|
| Cycle Time MOV (ns) | 642 |
|---|
| USB | OPTION |
|---|
| RS-422 | 1 |
|---|
| Power Consumption (W) | 45 |
|---|
| Buffer Battery | YES |
|---|
| Protection Class | IP20 |
|---|
| Min. Ambient Temperature (°C) | 0 |
|---|
| Max. Ambient Temperature (°C) | 55 |
|---|
| Series | MELSEC-F SERIES |
|---|
Product Dimensions & Weight
| Width (mm) | 285 |
|---|
| Height (mm) | 90 |
|---|
| Depth (mm) | 86 |
|---|
| Weight (kg) | 1,2 |
|---|
