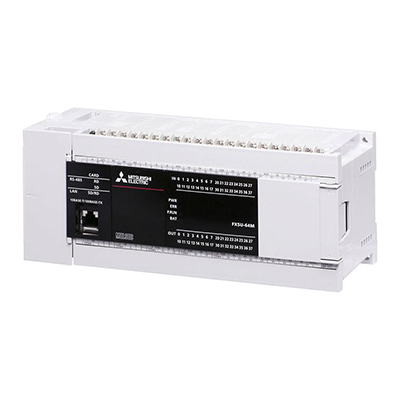

FA-COM PLC: Main Unit
| Type | FX5U |
|---|
| Power Supply (V) | 100-240 |
|---|
| Current Type | AC |
|---|
| Program Memory | 64K STEPS |
|---|
| Program Memory Unit | FLASH |
|---|
| Integrated Digital Inputs | 32 |
|---|
| Integrated Digital Outputs | 32 |
|---|
| Integrated Analogue Inputs | 2 |
|---|
| Output Type | TRANSISTOR |
|---|
| Output Logic | SINK |
|---|
| Local I/O Points | 256 |
|---|
| Local + Remote I/O Points | 512 |
|---|
| Expandable | YES |
|---|
| Cycle Time LD (ns) | 34 |
|---|
| Cycle Time MOV (ns) | 34 |
|---|
| Ethernet Port | 1 |
|---|
| RS-485 | 1 |
|---|
| Power Consumption (W) | 40 |
|---|
| Buffer Battery | OPTION |
|---|
| Protection Class | IP10 |
|---|
| Min. Ambient Temperature (°C) | 0 |
|---|
| Max. Ambient Temperature (°C) | 55 |
|---|
| Series | MELSEC IQ-F SERIES |
|---|
Product Dimensions & Weight
| Width (mm) | 220 |
|---|
| Height (mm) | 90 |
|---|
| Depth (mm) | 83 |
|---|
| Weight (kg) | 1 |
|---|
Conformity
| CE | COMPLIANT |
|---|
| UL/cUL | COMPLIANT |
|---|
| EAC | COMPLIANT |
|---|
| Shipping Approvals | ABS,BV,DNV GL,KR,LR,NK,RINA |
|---|
| UKCA | COMPLIANT |
|---|
