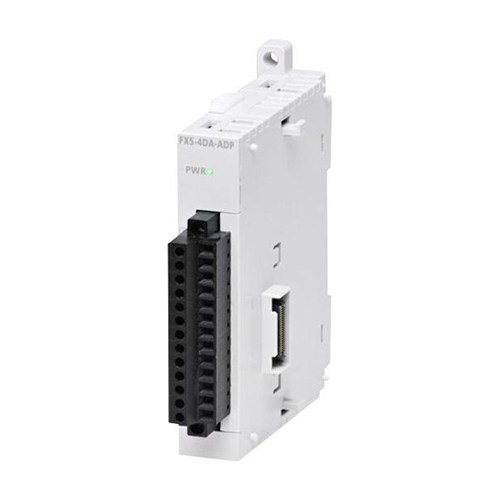

FA-COM PLC: Analogue I/O Module
| Series |
MELSEC IQ-F SERIES |
| Type |
ANALOG OUTPUT |
| Power Supply (V) |
24 |
| Current Type |
DC |
| Integrated Analogue Outputs |
4 |
| Output Voltage Range (V) |
-10-10; 0-10; 0-5; 1-5 |
| Output Current Range (mA) |
0-20; 4-20 |
| Min. Ambient Temperature (°C) |
0 |
| Max. Ambient Temperature (°C) |
55 |
Product Dimensions & Weight
| Width (mm) |
17,6 |
| Height (mm) |
106 |
| Depth (mm) |
89,1 |
| Weight (kg) |
0,1 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,KR,LR,NK,RINA |
| UKCA |
COMPLIANT |
