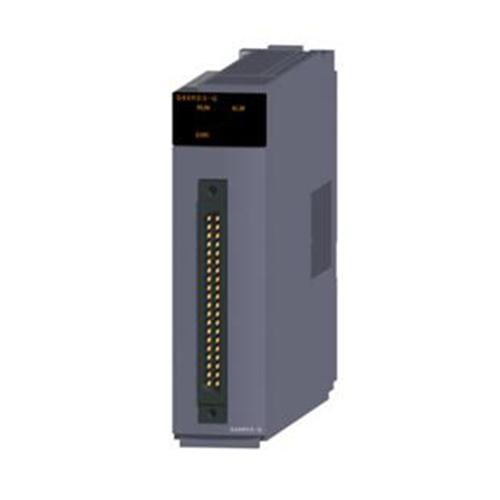

Mitsubishi Q series Analog modules Q68RD3-G
- Mitsubishi PLC CPU Module Q Series
FA-MOD PLC: Temperature Module
| Series |
MELSEC-Q SERIES |
| Type |
TEMPERATURE INPUT |
| Occupied I/O Points on PLC |
16 |
| Integrated Analogue Inputs |
8 |
| Input Type |
RTD |
| Applicable RTD Type |
JPT100, NI100, PT100 |
| Int. Current Consumption (A) |
0,54 |
Product Dimensions & Weight
| Width (mm) |
27,4 |
| Height (mm) |
102 |
| Depth (mm) |
130 |
| Weight (kg) |
0,2 |
Conformity
| CE |
COMPLIANT |
| UL/cUL |
COMPLIANT |
| EAC |
COMPLIANT |
| Shipping Approvals |
ABS,BV,DNV GL,LR,NK,RINA |
| UKCA |
COMPLIANT |
Product Packaging
| Cardboard (g) |
55 |
| Other paper (g) |
1 |
| Aluminum (g) |
0 |
| Steel (g) |
0 |
| Styrofoam (g) |
0 |
| Other plastic (g) |
18 |
| Wood (g) |
0 |
| Glass (g) |
0 |
| Others (g) |
0 |
Environmental
| REACH Limit Exceeded |
YES |
| REACH Substance CAS Number |
7439-92-1, 2451-62-9, 80-05-7 |
| Dangerous Goods Regulations |
NO |
| RoHS Compliance |
COMPLIANT |
| WEEE |
B2B |
