Servo Motor, PLC& HMI

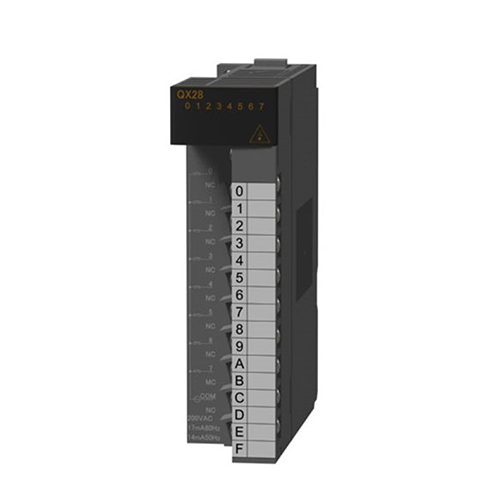

Mitsubishi Q series Input/Interrupt modules 8 Point QX28
- Mitsubishi PLC CPU Module Q Series
FA-MOD PLC: Digital Input Module
| Series | MELSEC-Q SERIES |
|---|---|
| Type | AC INPUT |
| Power Supply (V) | 100-240 |
| Current Type | AC |
| Occupied I/O Points on PLC | 16 |
| Integrated Digital Inputs | 8 |
| Rated Input Voltage (VAC) | 100-240 |
| Wiring | SCREW |
| Int. Current Consumption (A) | 0,05 |
Product Dimensions & Weight
| Width (mm) | 27,4 |
|---|---|
| Height (mm) | 98 |
| Depth (mm) | 90 |
| Weight (kg) | 0,2 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| UKCA | COMPLIANT |
