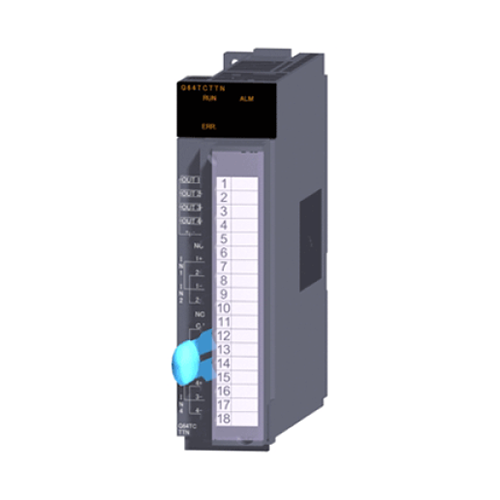

Mitsubishi Q series Temperature control modules Q64TCTTN
- Mitsubishi PLC CPU Module Q Series
FA-MOD PLC: Temperature Module
| Series | MELSEC-Q SERIES |
|---|---|
| Type | TEMPERATURE CONTROL |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 4 |
| Input Type | THERMOCOUPLE |
| Applicable Thermocouple Type | L, K, J, E, B, N, PLII, U, T, S, R |
| Int. Current Consumption (A) | 0,29 |
Product Dimensions & Weight
| Width (mm) | 27,4 |
|---|---|
| Height (mm) | 98 |
| Depth (mm) | 112 |
| Weight (kg) | 0,2 |
Conformity
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK,RINA |
| UKCA | COMPLIANT |
