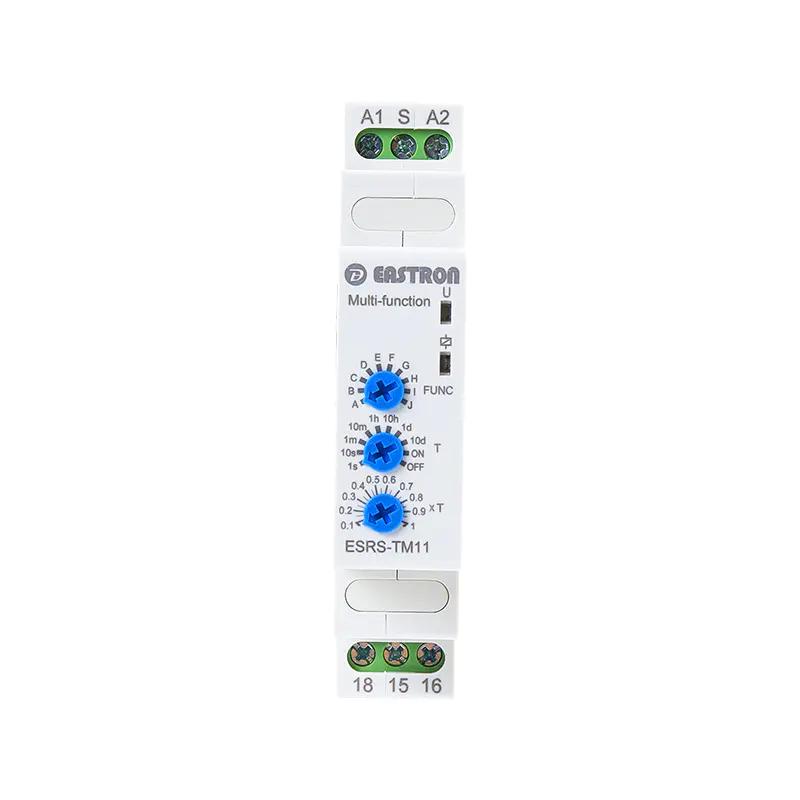

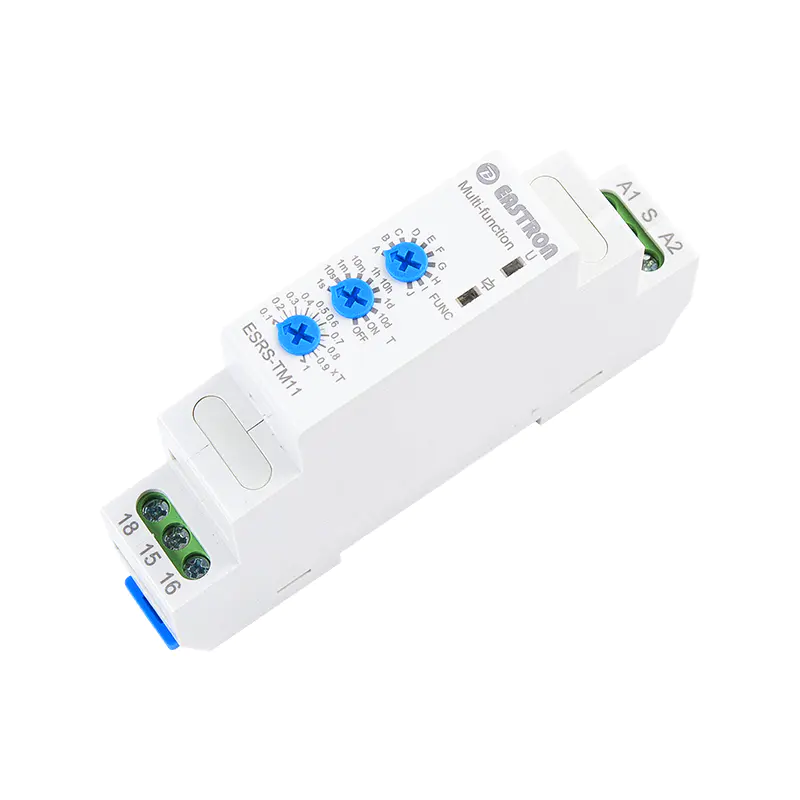

Multi-function Time Relay Eastron ESRS-TM11/12/14/23
- Microcontroller based
- 10 functions
- 10 time ranges(1s,10s,1m,10m,1h,10h,1d,10d,ON,OFF)
- 1 changeover contact
- LED indication for power supply and relay status
- 1 Module Din-rail mounting
|
Technical data |
||||
|
Models |
ESRS-TM11 |
ESRS-TM12 |
ESRS-TM14 |
ESRS-TM23 |
|
Supply terminals |
A1,A2 |
A1,A2,A3 |
A1,A2 |
A1,A2 |
|
Pulse terminal |
S |
|||
|
Supply voltage |
AC220V |
A1-A2:AC220V A3-A4;AC/DC 24V |
AC/DC: 12-240V |
AC/DC:24-240V |
|
Rated frequency |
50/60HZ |
|||
|
Time range |
0.1s-10days |
|||
|
Setting accuracy |
<5% |
|||
|
Repetition accuracy |
<0.2% |
|||
|
Output contacts |
1C/0 |
|||
|
Current rating |
8A/AC1 |
|||
| Contact
capacity |
AC-15:2A |
|||
|
Insulation voltage |
250V |
|||
|
Protection degree |
IP20 |
|||
|
Mechanical life |
106 |
|||
|
Protection degree |
IP20 |
|||
|
Pollution degree |
3 |
|||
|
Ambient temperature |
-5℃>40℃ |
|||
|
Storage temperature |
-10℃~50℃ |
|||
|
Wire size |
0.5mm2 〜1mm2 |
|||
|
Standard |
IEC/EN60730-1/IEC/EN60730-2-7 |
|||
