Dispensing

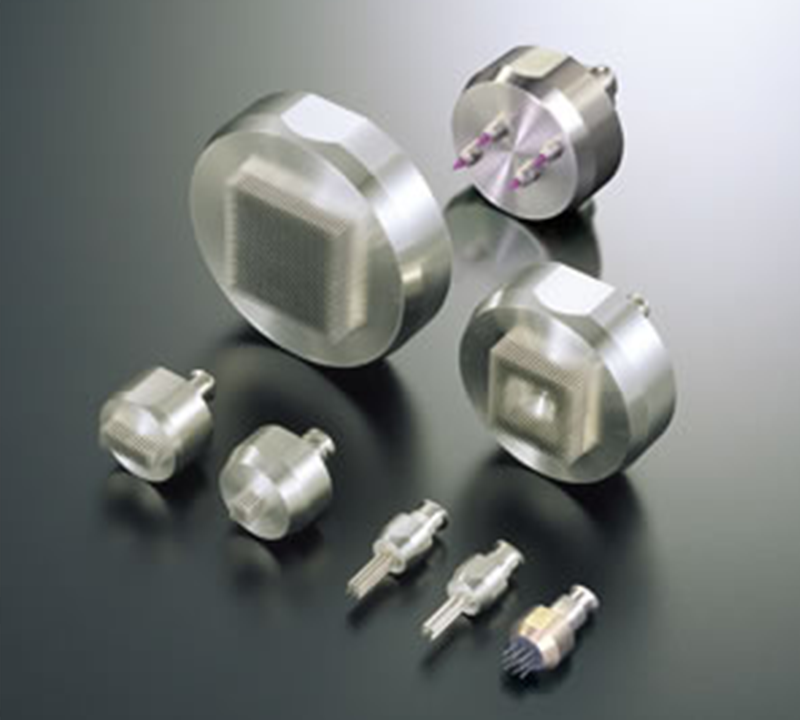

Multi nozzles Musashi MN
Customization of pin placement and length according to dispensing pattern
Simultaneous multi-point dispensing will shorten your tack time. Various dispensing patterns are supported.
Simultaneous multi-point dispensing will shorten your tack time. Various dispensing patterns are supported.
- Needle material: Stainless steel
- Needle base material: Stainless steel
- Multi nozzles MN◇◇-□□G-○○L-△△P [standard]
| Model | Cap dimensions | |
|---|---|---|
| A (ϕ) | B | |
| MN10 | 10 | 15 |
| MN13 | 13 | 19 |
| MN15 | 15 | 22 |
| MN17 | 17 | 22 |
| MN19 | 19 | 22 |
| MN21 | 21 | 22 |
| MN23 | 23 | 25 |
| MN25 | 25 | 25 |
| MN27 | 27 | 25 |
| Pipe gauge | Needle OD (ϕ) | Needle ID (ϕ) |
|---|---|---|
| 12 | 2.99 | 2.30 |
| 13 | 2.42 | 1.80 |
| 14 | 2.01 | 1.58 |
| 15 | 1.82 | 1.37 |
| 16 | 1.67 | 1.19 |
| 17 | 1.56 | 1.04 |
| 18 | 1.22 | 0.86 |
| 19 | 1.00 | 0.68 |
| 20 | 0.91 | 0.58 |
| 21 | 0.83 | 0.49 |
| 22 | 0.72 | 0.39 |
| 23 | 0.63 | 0.32 |
| 24 | 0.57 | 0.29 |
| 25 | 0.50 | 0.26 |
| 26 | 0.46 | 0.24 |
| 27 | 0.41 | 0.20 |
| 28 | 0.35 | 0.15 |
Note: Sizes other than those shown above are also available. Please contact our sales department.
