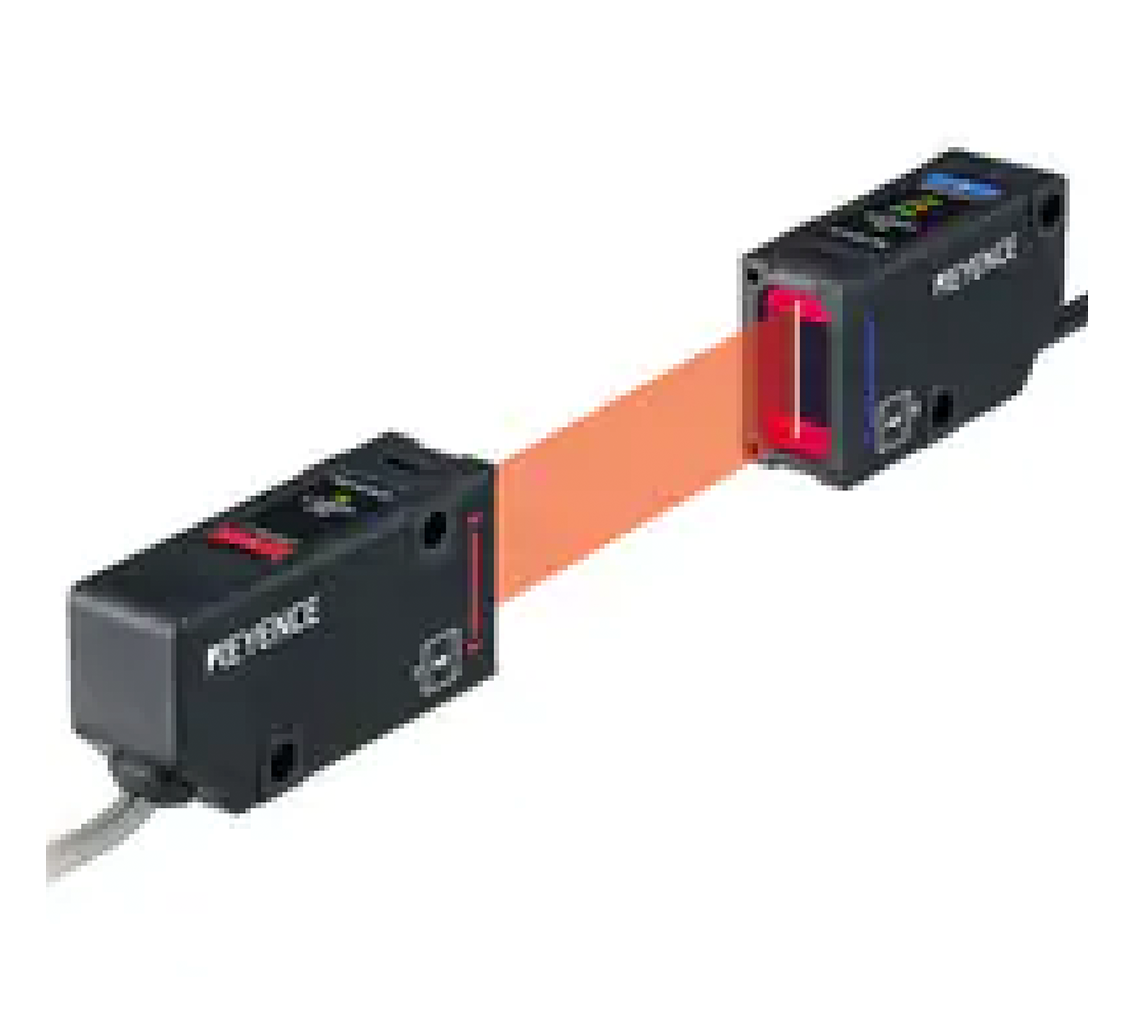

Multi-Purpose Digital Laser Sensor LV-NH100

Model

LV-NH100

Type

Area thrubeam, High performance

FDA (CDRH) Part 1040.10

Class 1 Laser Product

IEC 60825-1

Light source

Visible red semiconductor laser, Wavelength: 660 nm

Detecting
distance

MEGA

2000 mm 78.74"
(Detecting area: 10 mm 0.39")

ULTRA

SUPER

TURBO

FINE

HSP

Environmental resistance

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Material

Case

Glass reinforced plastic

Lens cover

Transmitter: Glass, Receiver: Polyarylate

Weight

Approx. 75 g
