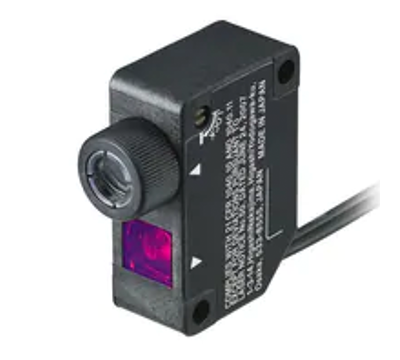

Multi-Purpose Digital Laser Sensor LV-NH32

Model

LV-NH32

Type

Adjustable beam spot

FDA (CDRH) Part 1040.10

Class 1 Laser Product

IEC 60825-1

Light source

Visible red semiconductor laser, Wavelength: 660 nm

Detecting
distance

MEGA

1200 mm 47.24"

ULTRA

1000 mm 39.37"

SUPER

750 mm 29.53"

TURBO

500 mm 19.69"

FINE

250 mm 9.84"

HSP

200 mm 7.87"

Environmental resistance

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Material

Case

Glass reinforced plastic

Lens cover

Acrylic (Receivers: Polyarylate)

Weight

Approx. 65 g
