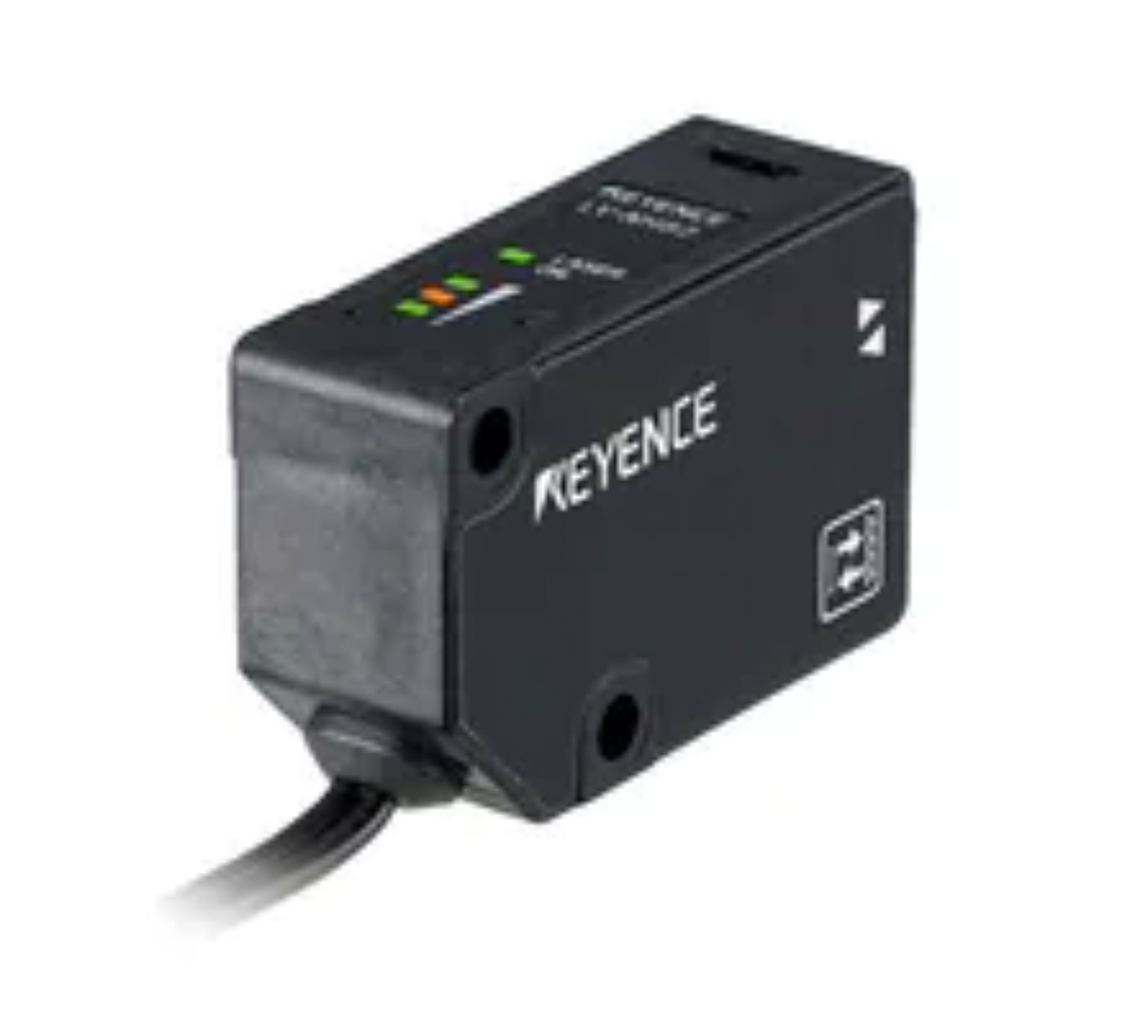

Multi-Purpose Digital Laser Sensor LV-NH62

Model

LV-NH62

Type

Small spot

FDA (CDRH) Part 1040.10

Class 1 Laser Product

IEC 60825-1

Light source

Visible red semiconductor laser, Wavelength: 660 nm

Detecting
distance

MEGA

8 m 26.2'

ULTRA

7 m 23'

SUPER

6 m 19.7'

TURBO

5 m 16.4'

FINE

3.5 m 11.5'

HSP

2 m 6.6'

Environmental resistance

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)

Material

Case

Glass reinforced plastic

Lens cover

Norbornene plastic

Reflective mirror

Polycarbonate, acrylic

Weight

Approx. 65 g
