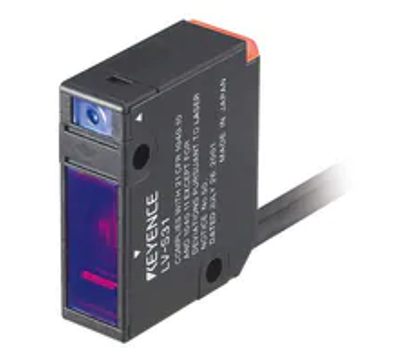

Multi-Purpose Digital Laser Sensor LV-S31

Model

LV-S31

Type

Adjustable distance definite reflective

FDA (CDRH) Part 1040.10

Class 1 Laser Product

IEC 60825-1

Light source

Visible red semiconductor laser, Wavelength: 655 nm

Detecting
distance

MEGA

50 to 200 mm 1.97" to 7.87"
(Adjustment range)

ULTRA

SUPER

TURBO

FINE

HSP

Environmental resistance

Ambient temperature

0 to +50 °C 32 to 122 °F (No freezing)

Material

Case

Glass reinforced plastic

Display

Polycarbonate

Lens cover

Transmitter lens: Norbornene plastic
Receiver lens cover: Polyarylate

Weight

Approx. 75 g
