Sensor

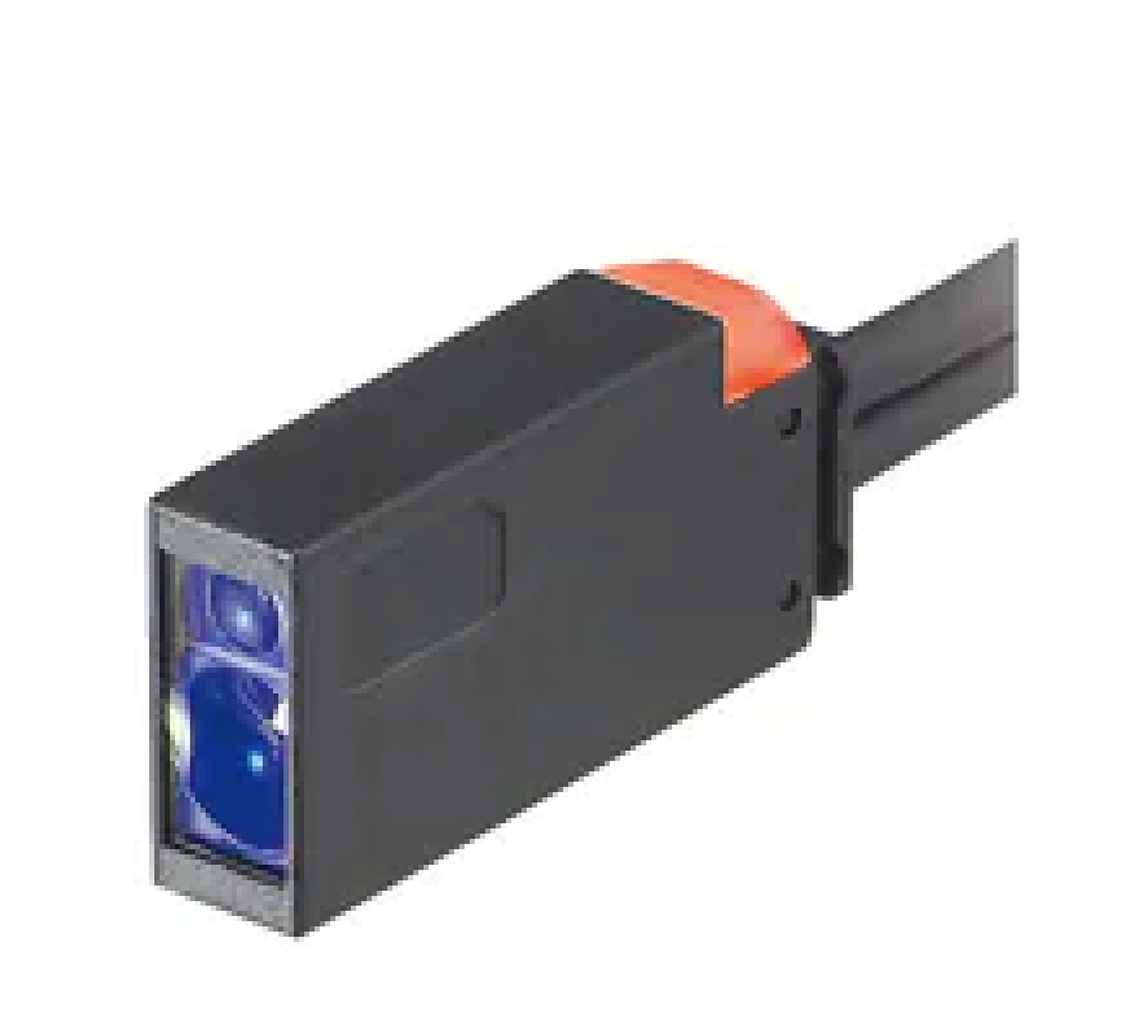

Multi Purpose Digital Laser Sensor LV-S41
|
Model |
LV-S41 |
|||
|
Type |
Small |
|||
|
FDA (CDRH) Part 1040.10 |
Class 1 Laser Product |
|||
|
IEC 60825-1 |
||||
|
Light source |
Visible red semiconductor laser, Wavelength: 655 nm |
|||
|
Detecting |
MEGA |
600 mm 23.62" |
||
|
ULTRA |
500 mm 19.69" |
|||
|
SUPER |
400 mm 15.75" |
|||
|
TURBO |
300 mm 11.81" |
|||
|
FINE |
200 mm 7.87" |
|||
|
HSP |
150 mm 5.91" |
|||
|
Environmental resistance |
Ambient temperature |
-10 to +50 °C 14 to 122 °F (No freezing) |
||
|
Material |
Case |
Glass reinforced plastic |
||
|
Display |
Polycarbonate |
|||
|
Lens cover |
Norbornene plastic |
|||
|
Weight |
Approx. 70 g |
|||
