MultiTask Photoelectric Sensors SICK PowerProx
Type:WTT12L-B2561
Part No.:1072611
Part No.:1072611

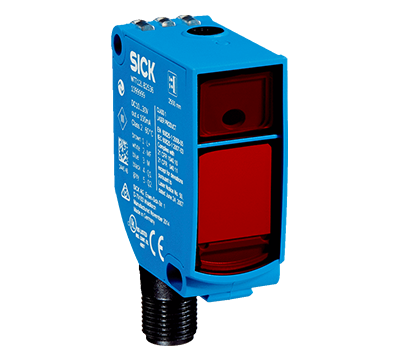

MultiTask Photoelectric Sensors SICK PowerProx WTT12L-B2561
Features
Mechanics/electronics
Safety-related parameters
Classifications
Features
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 20 mm x 49.6 mm x 44.2 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 50 mm ... 3,800 mm 1) |
| Sensing range |
100 mm ... 3,800 mm 2) 1) |
| Type of light | Visible red light |
| Light source | Laser 3) |
| Light spot size (distance) | Ø 18 mm (3,800 mm) |
| Wave length | 658 nm |
| Laser class | 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11) |
| Adjustment | Potentiometer, 4 turns (1 x) |
- 1) Object with 6 ... 90 % remission (based on standard white to DIN 5033).
- 2) Adjustable.
- 3) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 70 mA 3) |
| Switching output | Push-pull: PNP/NPN 4) |
| Number of switching outputs | 2 (Q, /Q) 4) |
| Switching mode | Light/dark switching 4) |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 5 ms 5) |
| Switching frequency | 100 Hz 6) |
| Analog output | - |
| Input | Sender off |
| Connection type | Male connector M12, 5-pin |
| Circuit protection |
A 7) B 8) C 9) |
| Protection class | III |
| Weight | 48 g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Ambient operating temperature | –35 °C ... +50 °C 10) |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Warm-up time | < 15 min 11) |
| Initialization time | < 300 ms |
| UL File No. | NRKH.E181493 |
- 1) Limit values. Operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load. At VS = 24 V.
- 4) Q, /Q = 1 switching threshold, light/dark switching (complementary).
- 5) Signal transit time with resistive load.
- 6) With light/dark ratio 1:1.
- 7) A = VS connections reverse-polarity protected.
- 8) B = inputs and output reverse-polarity protected.
- 9) C = interference suppression.
- 10) As of Ta = 45 °C, a max.load current Imax = 50 mA is permitted.
- 11) Below Tu = –10 °C a warm-up time is necessary.
Safety-related parameters
| MTTFD | 133 years |
| DCavg | 0 % |
Classifications
| ECl@ss 5.0 | 27270904 |
| ECl@ss 5.1.4 | 27270904 |
| ECl@ss 6.0 | 27270904 |
| ECl@ss 6.2 | 27270904 |
| ECl@ss 7.0 | 27270904 |
| ECl@ss 8.0 | 27270904 |
| ECl@ss 8.1 | 27270904 |
| ECl@ss 9.0 | 27270904 |
| ECl@ss 10.0 | 27270904 |
| ECl@ss 11.0 | 27270904 |
| ETIM 5.0 | EC002719 |
| ETIM 6.0 | EC002719 |
| ETIM 7.0 | EC002719 |
| ETIM 8.0 | EC002719 |
| UNSPSC 16.0901 | 39121528 |
