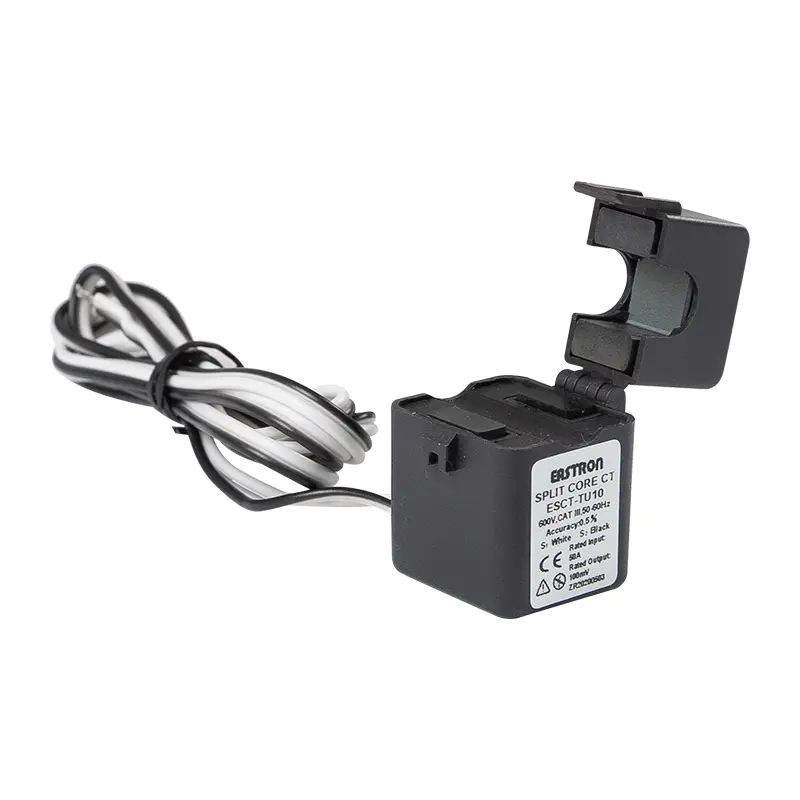

Mv/ma Output Split Core Current Sensor Eastron ESCT-TU/TA Series
- Primary input 5A~600A
- Secondary output: 333mV/ 100mV/100mA/40mA, etc.
- Split core, self-locking, easy installation
- Safe Operation
| Model |
Primary Current |
Secondary Output |
Accuracy |
| ESCT-TU10 |
5A |
100/333mV |
0.5 or 1 |
| 10A |
100/333mV |
0.5 or 1 |
| 20A |
100/333mV |
0.5 or 1 |
| 50A |
100/333mV |
0.5 or 1 |
| 75A |
100/333mV |
0.5 or 1 |
| ESCT-TU16 |
5A |
100/333mV |
0.5 or 1 |
| 10A |
100/333mV |
0.5 or 1 |
| 50A |
100/333mV |
0.5 or 1 |
| 100A |
100/333mV |
0.5 or 1 |
| 150A |
100/333mV |
0.5 or 1 |
| ESCT-TU24 |
100A |
100/333mV |
0.5 or 1 |
| 150A |
100/333mV |
0.5 or 1 |
| 200A |
100/333mV |
0.5 or 1 |
| 250A |
100/333mV |
0.5 or 1 |
| 300A |
100/333mV |
0.5 or 1 |
| ESCT-TU36 |
100A |
100/333mV |
0.5 or 1 |
| 150A |
100/333mV |
0.5 or 1 |
| 200A |
100/333mV |
0.5 or 1 |
| 300A |
100/333mV |
0.5 or 1 |
| 400A |
100/333mV |
0.5 or 1 |
| 500A |
100/333mV |
0.5 or 1 |
| 600A |
100/333mV |
0.5 or 1 |
| ESCT-TU46 |
400 |
40/100mA |
0.5 or 1 |
| 500 |
40/100mA |
0.5 or 1 |
| 600 |
40/100mA |
0.5 or 1 |
| 700 |
40/100mA |
0.5 or 1 |
| 800 |
40/100mA |
0.5 or 1 |
| ESCT-TU50（PC material） |
400 |
40/100mA |
0.5 or 1 |
| 500 |
40/100mA |
0.5 or 1 |
| 600 |
40/100mA |
0.5 or 1 |
| 700 |
40/100mA |
0.5 or 1 |
| 800 |
40/100mA |
0.5 or 1 |
| 1000 |
40/100mA |
0.5 or 1 |
| 1200 |
40/100mA |
0.5 or 1 |
| Model |
Primary Current |
Secondary Output |
Accuracy |
| ESCT-TA10 |
5A |
40/100mA |
0.5 or 1 |
| 10A |
40/100mA |
0.5 or 1 |
| 20A |
40/100mA |
0.5 or 1 |
| 50A |
40/100mA |
0.5 or 1 |
| 75A |
40/100mA |
0.5 or 1 |
| ESCT-TA16 |
5A |
40/100mA |
0.5 or 1 |
| 10A |
40/100mA |
0.5 or 1 |
| 50A |
40/100mA |
0.5 or 1 |
| 100A |
40/100mA |
0.5 or 1 |
| 150A |
40/100mA |
0.5 or 1 |
| ESCT-TA24 |
100A |
40/100mA |
0.5 or 1 |
| 150A |
40/100mA |
0.5 or 1 |
| 200A |
40/100mA |
0.5 or 1 |
| 250A |
40/100mA |
0.5 or 1 |
| 300A |
40/100mA |
0.5 or 1 |
| ESCT-TA36 |
100A |
40/100mA |
0.5 or 1 |
| 150A |
40/100mA |
0.5 or 1 |
| 200A |
40/100mA |
0.5 or 1 |
| 300A |
40/100mA |
0.5 or 1 |
| 400A |
40/100mA |
0.5 or 1 |
| 500A |
40/100mA |
0.5 or 1 |
| 600A |
40/100mA |
0.5 or 1 |
| ESCT-TU46 |
400 |
40/100mA |
0.5 or 1 |
| 500 |
40/100mA |
0.5 or 1 |
| 600 |
40/100mA |
0.5 or 1 |
| 700 |
40/100mA |
0.5 or 1 |
| 800 |
40/100mA |
0.5 or 1 |
| ESCT-TU50（PC material） |
400 |
40/100mA |
0.5 or 1 |
| 500 |
40/100mA |
0.5 or 1 |
| 600 |
40/100mA |
0.5 or 1 |
| 700 |
40/100mA |
0.5 or 1 |
| 800 |
40/100mA |
0.5 or 1 |
| 1000 |
40/100mA |
0.5 or 1 |
| 1200 |
40/100mA |
0.5 or 1 |
