Sensor

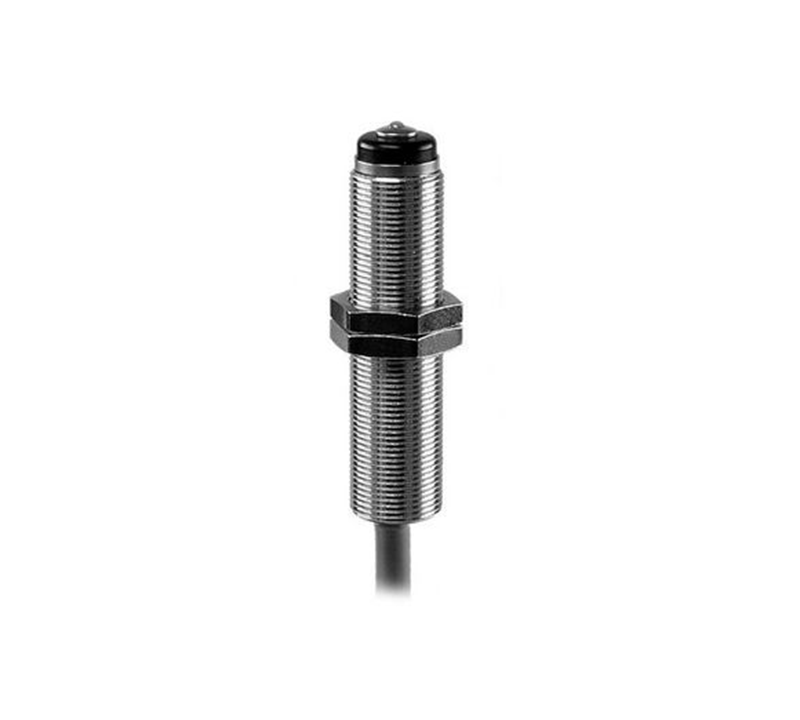

My-Com precision switches Baumer MY-COM L75P80/L
| General Data |
| Repeat accuracy |
< 0,001 mm |
| Activating force |
75 cN |
| Mech. pre-run / overrun |
- / 0,6 mm approx. |
| Measurement type |
Contact with medium |
| Direction of approach |
Frontal |
| Output indicator |
LED red |
| Electrical Data |
| Voltage supply range +Vs |
5 ... 36 VDC |
| Load current max. at 24 VDC |
50 mA |
| Load resistance min. |
480 Ohm |
| Output circuit |
PNP make function (NO) |
| Mechanical Data |
| Activating pin |
Ruby |
| Housing material |
Brass nickel plated |
| Dimension |
8 mm |
| Type |
Cylindrical threaded |
| Housing length |
30 mm |
| Connection types |
Cable, 80 cm |
| Ambient Conditions |
| Operating temperature |
-20 ... +75 °C |
| Protection class |
IP 67 |
