Sensor

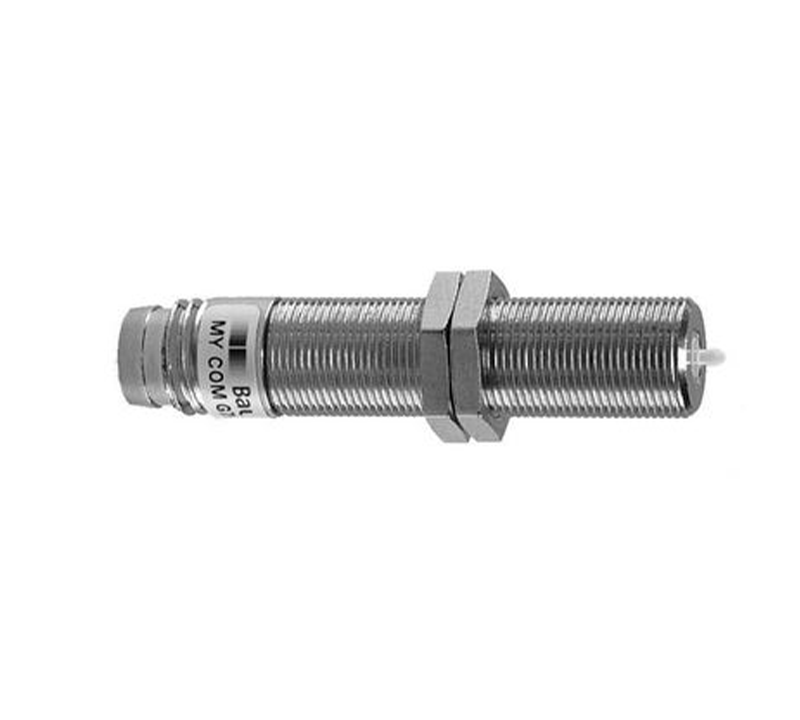

My-Com precision switches Baumer MY-COM G75P/S35L
| General Data |
| Repeat Accuracy |
< 0.001 mm |
| Activating Force |
75 cN |
| Mechanical Pre-run / Overrun |
- / 1.5 mm approx. |
| Measurement Type |
Contact with Medium |
| Direction of Approach |
Frontal |
| Output Indicator |
LED Red |
| Electrical Data |
| Voltage Supply Range +Vs |
5 ... 36 VDC |
| Load Current Max. at 24 VDC |
50 mA |
| Load Resistance Min. |
480 Ohm |
| Output Circuit |
PNP make function (NO) |
| Mechanical Data |
| Activating Pin |
Zirconium Oxide ZrO2 |
| Housing Material |
Brass Nickel Plated |
| Dimension |
8 mm |
| Type |
Cylindrical Threaded |
| Housing Length |
38 mm |
| Connection Types |
Connector M8 |
| Ambient Conditions |
| Operating Temperature |
-20 ... +75 °C |
| Protection Class |
IP 50 |
