Dispensing

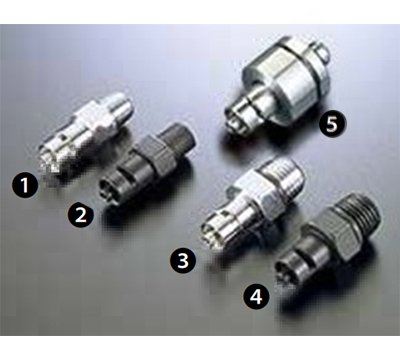

Needle adapter Musashi P-Nadp
This adapter is used to connect the valves and cartridges to a needle.
- P-NADP-14
- P-NADP-15
- P-NADP-12
- P-NADP-13
- P-NADP-17
| Item name | Model (former model) | Suitable products | Wetted part material | Connector dia. |
| Needle adapter-1 [No.14] | P-NADP-14 (NA-1) | For valves | Brass (Nickel plated) | R1/8 |
| Needle adapter-2 [No.15] | P-NADP-15 (NA-1T) | Fluorine coated | ||
| Needle adapter-3 [No.12] | P-NADP-12 (NA-2V) | For barrels | Brass (Nickel plated) | R1/4 |
| Needle adapter-4 [No.13] | P-NADP-13 (NA-2VT) | Fluorine coated | ||
| Needle adapter-5 [No.17] | P-NADP-17 | AeroJet, MPP-1, DHG, Valves, Syringes, Nozzles (CPN, DN, Multi nozzle, Slit nozzle) ＊ Mounting direction adjustable | Stainless steel, Fluorocarbon resin, Brass (Nickel plated) | Double thread screwed luer lock plug |
