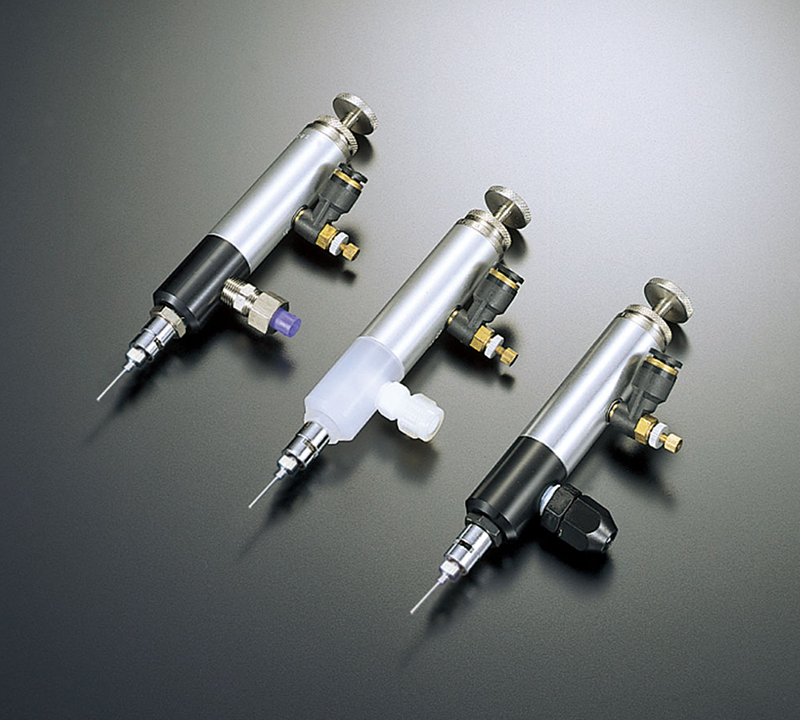

Needle control valve Musashi Mini Val NCV-10

• Stable dispensing of fluids containing filler
• One-port control system that can be reused easily from a syringe system
• Two-port control system that is best suited for more high-precision dispensing
• Fluorine resin type suitable for dispensing corrosive or anaerobic fluid materials, and UV material-supported type are also available.

Specifications

	NCV-10-1P	NCV-10-2P
Driving system	Pneumatic driven system
Minimum dispensing amount	9 μL	8 μL
Compatible viscosity	Up to 50 Pa·s
Control air supply pressure range	0.35 to 0.5MPa	0.3 to 0.5 MPa
Fluid material supply pressure range	Max. 0.5 Mpa
Maximum number of cycles	640 times/min.	680 times/min.
Fluid intake port	Rc1/8 (fluid feed joint ordered separately)
Fluid dispensing port	Luer lock
Control air	One-touch joint for φ6 outer diameter tube (with speed controller)
Operating temperature range	5 to 60°C
Wetted part material	Stainless steel, Fluorine resin
Weight	149 g

Note: The dispensing volume, compatible viscosity, and max. response count shown in the specifications above are only for reference.

Models


Valve type		Model	Wetted part material	Applicable fluid materials	Weight
Type 10	1 port	NCV-10-1P	Stainless steel, Fluorine resin, Brass	Low and medium viscosity fluids	140 g
	2-port	NCV-10-2P	Aluminum alloy (anodized)	Low and medium viscosity fluids	150 g
	1 port fluorine resin	NCV-10-T-1P	Stainless steel (fluorine resin coated), Fluorine resin	Anaerobic material, materials containing fillers	120 g
	2 port fluorocarbon polymers	NCV-10-T-2P	Stainless steel, Fluorine resin	Anaerobic material, materials containing fillers	130 g
	1 port UV	NCV-10-U-1P	Stainless steel (Fluorocarbon coated), Stainless steel, Polyacetal	UV materials	120 g
	2 port UV	NCV-10-U-2P	Stainless steel, Polyacetal	UV materials	120 g

Note: The applicable fluid materials are only for reference
