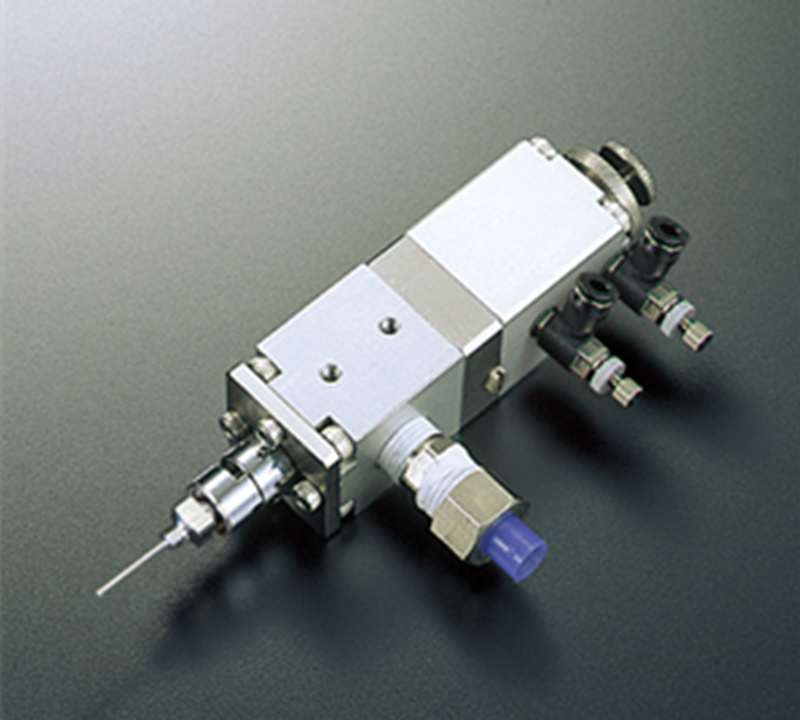

Needle control valve Musashi Mini Val NCV-12S

• Stable dispensing of fluid materials containing filler
• Achieves superior fluid cut-off.
• No leakage as well as long life
• Diaphragm structure prevents fluid material from entering sliding parts.
• The ultra-compact size, rectangular shape, and lightweight valves are ideal for use with automated equipment.



Model	NCV-12S-2P
Driving system	Pneumatic driven system
Minimum dispensing amount	8 μL
Compatible viscosity	Up to 50 Pa·s
Applicable fluid materials	Fluid containing filler and other low and medium viscosity fluids
Control air supply pressure range	0.35 to 0.5 MPa
Fluid material supply pressure range	Max. 0.5 Mpa
Maximum number of cycles	640 times/min.
Fluid intake port	Rc1/8 (fluid feed joint ordered separately)
Fluid dispensing port	Luer lock
Control air	One-touch joint for φ4 outer diameter tube (with speed controller)
Operating temperature range	5 to 60°C
Wetted part material	Stainless steel, Fluorine resin, Aluminum alloy (anodized)
Weight	149 g

Note: The dose volume, compatible viscosity, material type, and maximum number of cycles shown in the specifications above are only for reference.
