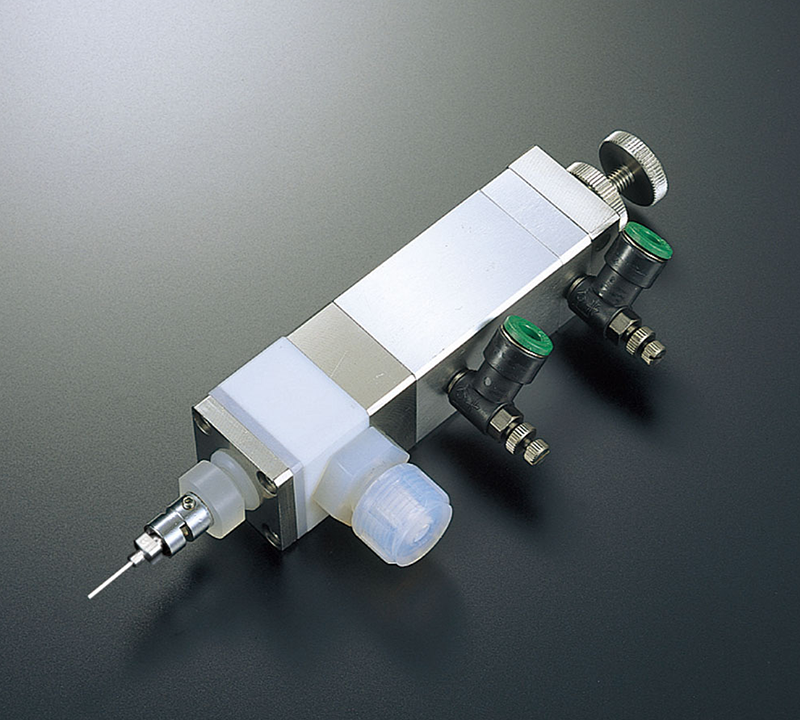

Needle control valve Musashi Mini Val NCV-70V

• Since the wetted part is made of fluorine resin, this valve is suitable for dispensing fixed doses of anaerobic fluid materials.
• A needle control valve that can dispense fixed doses of fluids containing fillers.

Specifications

	Type 7, 2 port, anaerobic, with NCV-7DV-25
Model	NCV-7DV-2P
Driving system	Pneumatic driven system
Minimum dispensing amount	8 μL
Compatible viscosity	Up to 10 Pa·s
Applicable fluid materials	Anaerobic material, materials containing fillers
Control air supply pressure range	0.3 to 0.4 MPa
Fluid material supply pressure range	MAX. 0.7 MPa
Maximum number of cycles	650 times/min.
Fluid intake port	φ6 x φ4 fluid feed fitting
Fluid dispensing port	Luer lock
Control air	One-touch joint for φ6 outer diameter tube (with speed controller)
Operating temperature range	5 to 50°C
Wetted part material	Fluorine resin, Fluororubber
Weight	450 g

Note: The dose volume, compatible viscosity, material type, and maximum number of cycles shown in the specifications above are only for reference.


External dimensions
