Non-Silicone Acrylic High Temperature Masking Tape
- High Temperature Masking Tape for wave soldering and reflow
- Temperature resistance 260℃ for 5min
- Leaves virtually no silicone residue

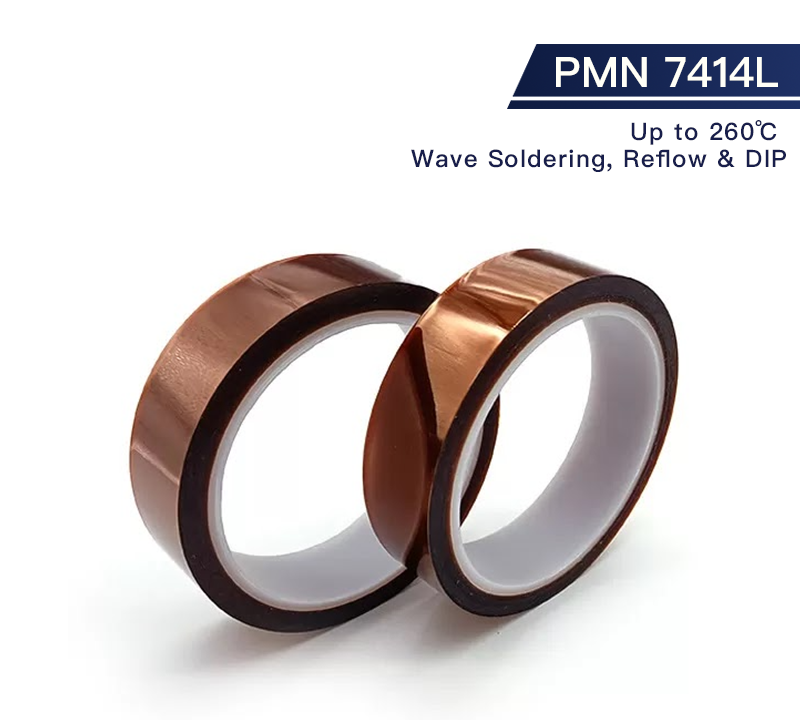

Non-Silicone, Acrylic High Temperature Masking Tape PMN 7414L is a single coated tape with polyimide film backing and acrylic adhesive for high temperature applications.
Application
Masking or protecting residue sensitive areas on printed circuit boards during high temperature operations such as
wave soldering, solder reflow and DIP processes.
Features
- Resistant high temperature up to 260℃ for 5 min
- Leaves virtually no silicone residue
- Very low coefficient of friction with self-lubricating characteristics
- Adhesive applied on back side shows strong adhesion to metals and plastics
- Polyethylene tape core instead of cardboard
Typical Physical Properties and Performance Characteristics
|
Property |
Value |
Test Method |
|
|
Imperial |
Metric |
||
|
Backing |
1.0 mil |
0.025 mm |
/ |
|
Total Thickness |
1.38±0.2 mil |
0.035±0.005 mm |
/ |
|
Adhesion to Steel |
0.45～0.79 lbs/in |
2~3.5N/25 mm |
GBT 2792-2014 |
|
Tensile Strength |
≥28 lbs/in |
≥5 (KN/M) |
GBT 30776-2014 |
|
Elongation |
≥45 % |
≥45% |
GBT 30776-2014 |
|
Temperature Resistance |
500 ℉ |
260℃ at 5min |
No residue after removal |
Product Construction/Material Description
|
Part No |
Description |
Length/m |
Width/mm |
|
PMN7414L0333 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
3 |
|
PMN7414L0433 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
4 |
|
PMN7414L0533 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
5 |
|
PMN7414L0733 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
7 |
|
PMN7414L0933 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
9 |
|
PMN7414L1033 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
10 |
|
PMN7414L1233 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
12 |
|
PMN7414L1433 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
14 |
|
PMN7414L1533 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
15 |
|
PMN7414L1733 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
17 |
|
PMN7414L1933 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
19 |
|
PMN7414L2033 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
20 |
|
PMN7414L2233 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
22 |
|
PMN7414L2533 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
25 |
|
PMN7414L3033 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
30 |
|
PMN7414L4033 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
40 |
|
PMN7414L5033 |
Non-Silicone, Acrylic High Temperature Masking Tape |
33 |
50 |
