Nordson EFD Cartridge Systems

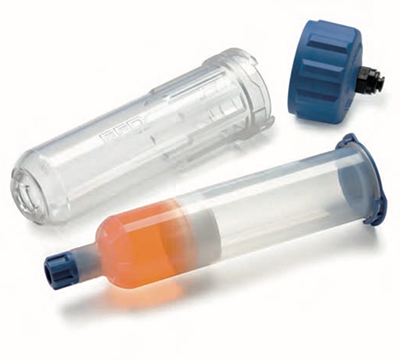

Optimum cartridges and retainers have been designed to function as a complete, integrated system that improves yields and reduces costs in fluid packaging and dispensing processes.
Cartridge systems are designed for applications that require a reservoir larger than a 55cc syringe barrel. They are available in 2.5 fl oz, 6 fl oz, 12 fl oz, 20 fl oz, and 32 fl oz capacities, and can be used to make timed or visual deposits.
Cartridge systems are designed for applications that require a reservoir larger than a 55cc syringe barrel. They are available in 2.5 fl oz, 6 fl oz, 12 fl oz, 20 fl oz, and 32 fl oz capacities, and can be used to make timed or visual deposits.
Nordson EFD Cartridge Systems
Features and Benefits
Features and Benefits
- Exceptional clarity to allow visual confirmation of fluid levels
- High-impact strength and dimensional stability
- ZeroDraftTM design ensures that internal diameter is
- consistent from top to bottom
- Excellent chemical compatibility with a wide range of fluids
- Available in clear, black, amber, green, and white
- White cartridges are molded from a proprietary blend and have
- better frozen temperature resistance
CARTRIDGES Size Clear White Amber Black Green QTY 2.5 fl oz (75 ml) 7012389 n/a 7012390 7012391 7014167 25 6 fl oz (180 ml) 7012398 7361311 7012399 7012400 - 25 12 fl oz (360 ml) 7012407 7029498 7012408 7012409 - 25 20 fl oz (600 ml) 7 7012416 7028361 7012736 7013878 - 10 32 fl oz (960 ml) 7014088 7028392 7014089 7014091 - 10 Sets are available in clear for most fluids; transparent amber for UV- and light-sensitive materials (less than 12% visible light from 550 nm or less); and opaque black for complete light blockage.

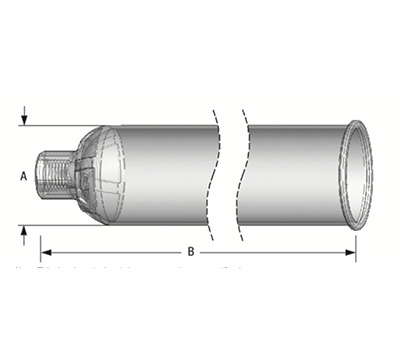

| CARTRIDGE DIMENSIONS | ||
|---|---|---|
| Size | A | B |
| 2.5 fl oz (75 ml) | 43.2 mm (1.70") | 98.8 mm (3.89") |
| 6 fl oz (180 ml) | 43.2 mm (1.70") | 181.5 mm (7.15") |
| 12 fl oz (360 ml) | 43.2 mm (1.70") | 314.3 mm (12.38") |
| 20 fl oz (600 ml) | 68.3 mm (2.69") | 249.7 mm (9.83") |
| 32 fl oz (960 ml) | 68.3 mm (2.69") | 346.4 mm (13.69") |
Note: This data is typical and does not constitute a specification.
