Nordson EFD ESD-safe Tips

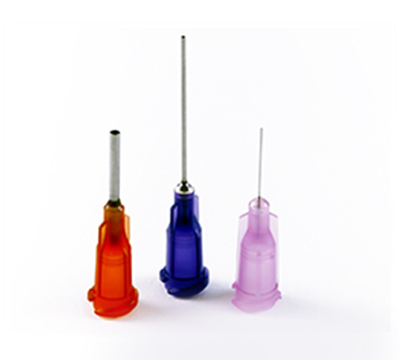

General Purpose Tips
Made from burr-free, polished passivated stainless steel, Optimum® general purpose dispense tips are ideal for handling a wide range of assembly fluids.

These tips deliver precise, consistent deposits every time. Designed with our own unique polypropylene SafetyLok™ hubs that fit securely onto the barrel reservoir, general purpose tips prevent leakage and ensure drip-free dispensing.

Each hub is designed with flush mating of the hub to the cutoff for smooth fluid flow and to prevent trapped air, which causes dripping and drooling. Burr-free passivated stainless steel tubing ensures consistent fluid deposits. Each hub is also manufactured and quality-tested to be free of molding flash – bits of plastic that can block fluid flow and cause inconsistent deposits.

All Optimum dispensing tips are manufactured in the USA in silicone-free facilities to prevent fluid contamination and are certified for industrial use.

Tip hubs are color coded by size to help identify the gauge or internal diameter. Tips are also packaged in clear boxes for easy
inventory control – with lot numbers, part numbers, and other information clearly labeled for greater process control and traceability.

Part Numbers

General Purpose Stainless Steel Tips
Straight	Straight	Straight	Straight	45° Bend	90° Bend	45° Bend	Gauge	Color	ID	OD
6.35 mm 0.25"	12.7 mm 0.5"	25.4 mm 1.0"	38.1 mm 1.5"	12.7 mm (0.5")	12.7 mm (0.5")	38.1 mm (1.5")
7018029	7018043	7018032	7018035	7018044	7018045	7016906	14	Olive	1.54 mm 0.060"	1.83 mm 0.072"
7018056	7018068	7018059	7018062	7018069	7018070	n/a	15	Amber	1.36 mm 0.053"	1.65 mm 0.065"
7018107	7018122	7018110	7018113	7018123	7018124	7016908	18	Green	0.84 mm 0.033"	1.27 mm 0.050"
7018163	7018178	7018166	7018169	7018179	7018180	n/a	20	Pink	0.61 mm 0.024"	0.91 mm 0.036"
7005005	7018233	7018222	7018225	7018234	7018235	7016910	21	Purple	0.51 mm 0.020"	0.82 mm 0.032"
7018260	7018272	7018263	7018266	7018273	7018274	n/a	22	Blue	0.41 mm 0.016"	0.72 mm 0.028"
7018302	7018314	7018305	7018308	7018315	7018316	n/a	23	Orange	0.33 mm 0.013"	0.65 mm 0.025"
7018333	7018345	7018336	7018339	7018346	7018347	n/a	25	Red	0.25 mm 0.010"	0.52 mm 0.020"
7018395	7005008	n/a	n/a	7018404	7018405	n/a	27	Clear	0.20 mm 0.008"	0.42 mm 0.016"
7018424	7018433	n/a	n/a	7018434	7018435	n/a	30	Lavender	0.15 mm 0.006"	0.31 mm 0.012"
7018448	n/a	n/a	n/a	n/a	n/a	n/a	30	Black	0.15 mm 0.006"	0.31 mm 0.012"
7018462	n/a	n/a	n/a	n/a	n/a	n/a	32	Yellow	0.10 mm 0.004"	0.24 mm 0.009"

Burr-free, polished, passivated stainless steel dispensing tips with polypropylene SafetyLokhubs for a secure fit to barrel reservoirs. Black is ESD-safe.
• 6.35 mm (0.25") tips: Fast point-to-point dispensing.
• 12.7 mm (0.50") tips: Standard all-around precision dispensing tips.
• 45° and 90° bent tips: Easy access into hard-to-reach areas.
