Nordson EFD Metal Nozzles

Metal Nozzles

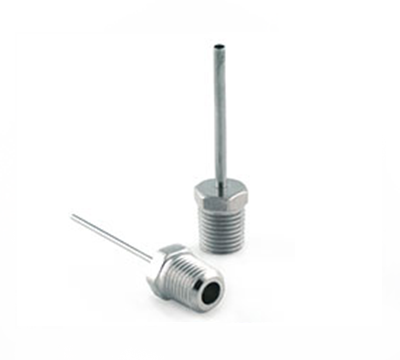

Our metal nozzles are 100% stainless steel free of flash and burrs. With a 1/4 NPT (6.35 mm) thread, they fit Nordson EFD 725 Series and 736HPA-NV valves.

Available in two varieties: standard stainless steel and standard stainless steel with multi-outlet tips. Multi-outlet tips allow users to simultaneously dispense in multiple areas.

Manufactured with high-quality steel, our metal nozzles deliver precise, consistent fluid dispensing. They come in six different gauges ranging from 7 to 16.

All Optimum® dispensing tips are manufactured in the USA in silicone-free facilities to prevent fluid contamination and are certified for industrial use.

Part Numbers

Metal Nozzles
Part #	Gauge	ID	Qty/ Bag
7014850	7	3.8 mm 0.150"	1
7014851	8	3.4 mm 0.135"	1
7014848	10	2.7 mm 0.106"	1
7014842	12	2.2 mm 0.085"	1
7014844	14	1.6 mm 0.063"	1
7014846	16	1.2 mm 0.047"	1

Metal nozzles thread into all cartridge sizes to fit 725 Series and 736HPA-NV valves. 38.1 mm (1 1/2") long metal nozzles with 1/4 NPT.
