Dispensing

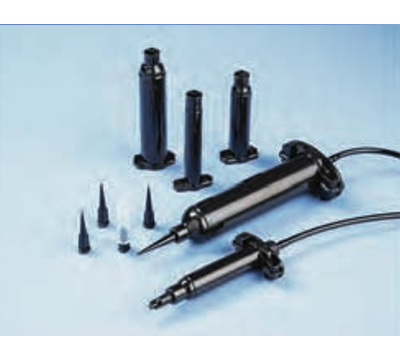

Nordson EFD Optimum ESD-Safe Components
Nordson EFD’s Optimum ESD-safe black dispensing components prevent static buildup when dispensing adhesives, pastes, coatings, and other assembly fluids used in manufacturing electronic products.
Nordson EFD Optimum ESD-Safe Components
Features and Benefits
Adapter assemblies sold individually. Pistons sold separately; see previous page.
Features and Benefits
- Static decay rate less than 2.0 seconds
- High conductivity
- Meets industry standards that ensure static will not be transferred while dispensing
- Molded from inert, non-carbon, non-surface-migratory material that’s safe, even
- for sensitive fluids
| ESD-SAFE COMPONENTS | ||||
|---|---|---|---|---|
| Size | ESD-Safe Black Barrels | Qty/Box | Black Adapter Assembly | |
| 0.9 m (3 ft) Hose | 1.8 m (6 ft) Hose | |||
| 3cc | 7362856 | 50 | 7016095 | 7016096 |
| 5cc | 7362858 | 40 | 7027849 | n/a |
| 10cc | 7362860 | 30 | 7016097 | 7016098 |
| 30cc | 7362862 | 20 | 7362545 | 7362546 |
| 55cc | 7362864 | 25 | ||
| ESD-SAFE SMOOTHFLOW TAPERED TIPS | |||||
|---|---|---|---|---|---|
| Gauge | Part # | Style | ID | Qty/ Box |
|
| mm | inch | ||||
| 18 | 7018150 | Tapered | 0.84 | 0.033 | 50 |
| 20 | 7018211 | Tapered | 0.58 | 0.023 | 40 |
| 25 | 7018373 | Tapered | 0.25 | 0.010 | 30 |
| 27 | 7363483 | Tapered | 0.20 | 0.008 | 20 |
| ESD-SAFE PRECISION STAINLESS STEEL TIPS | |||||
| 30 | 7018448 | General Purpose | 0.15 | 0.006 | 25 |
| 33 | 7018477 | Chamfered | 0.10 | 0.004 | 25 |
