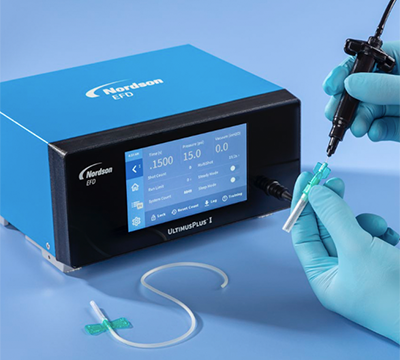

Nordson EFD UltimusPlus Series Dispensers
Improved usability and intuitive dispensing control
Experience a new level of ease with Nordson EFD’s UltimusPlusTM dispensers. Train operators in seconds with intuitive touchscreen control of dispensing parameters. Designed to simplify setup and operation, the UltimusPlus allows operators to focus on making accurate, controlled deposits. Plus, improve process control with full operator lockout of time, pressure, and vacuum settings.
Boost productivity with an optional barcode scanner that allows production to easily alternate between 16 dispensing programs by scanning the barcode.
Automation-ready, the UltimusPlus features an Ethernet connection that simplifies factory integration for high volume production. An internal Dispense Log automatically records dispense data and can be easily downloaded through a USB port to improve process control.
The UltimusPlus I features a 0.7–7.0 bar (10–100 psi) pressure regulator and is ideal for dispensing a range of fluids. The UltimusPlus II features a 0–1.0 bar (0.3–15 psi) pressure regulator and provides greater control when dispensing low-viscosity or thin fluids.
Experience a new level of ease with Nordson EFD’s UltimusPlusTM dispensers. Train operators in seconds with intuitive touchscreen control of dispensing parameters. Designed to simplify setup and operation, the UltimusPlus allows operators to focus on making accurate, controlled deposits. Plus, improve process control with full operator lockout of time, pressure, and vacuum settings.
Boost productivity with an optional barcode scanner that allows production to easily alternate between 16 dispensing programs by scanning the barcode.
Automation-ready, the UltimusPlus features an Ethernet connection that simplifies factory integration for high volume production. An internal Dispense Log automatically records dispense data and can be easily downloaded through a USB port to improve process control.
The UltimusPlus I features a 0.7–7.0 bar (10–100 psi) pressure regulator and is ideal for dispensing a range of fluids. The UltimusPlus II features a 0–1.0 bar (0.3–15 psi) pressure regulator and provides greater control when dispensing low-viscosity or thin fluids.
Nordson EFD UltimusPlus Series Dispensers
Features
Benefits
Specifications
Features
- Industry-leading intuitive touchscreen interface, in multiple languages
- Electronic pressure regulation with full operator lockout
- Optional barcode scanner
- MultiShotTM capability to dispense multiple shots from a single press of the foot pedal
- Ethernet compatible
- QuicksilverTM adapter allows faster cycle speeds for improved dispensing performance
Benefits
- Simplify setup and programming with touchscreen control of all dispensing parameters
- Improve process control with full operator lockout that prevents unauthorized changes
- Boost productivity – barcode scanner allows you to scan barcode and automatically alternate between 16 programs
- Minimize cycle time and reduce operator fatigue by minimizing repetitive movements with MultiShot
- Reduce factory air consumption and operating costs with first-to-market Sleep Mode
- Easy to automate and integrate with Smart Factory automation
| Part # | Description |
|---|---|
| 7364361 | UltimusPlus I dispenser, 0.7–7.0 bar (10–100 psi) pressure regulator |
| 7364475 | UltimusPlus I calibrated dispenser, 0.7–7.0 bar (10–100 psi) pressure regulator calibrated to EFD specifications based on NIST standards |
| 7364362 | UltimusPlus II dispenser, 0–1.0 bar (0.3–15 psi) pressure regulator |
| 7364476 | UltimusPlus II calibrated dispenser, 0–1.0 bar (0.3–15 psi) pressure regulator calibrated to EFD specifications based on NIST standards |
Specifications
| Item | Specification |
|---|---|
| Cabinet size | 21.2w x 10.8h x 19.2d cm (8.33w x 4.27h x 7.55d") |
| Weight | 1.8 kg (4.0 lb) |
| Power adapter | AC input: 100-240 VAC (+/-10%), ~50/60 Hz, 0.6 Amp DC Output: 24 VDC @ 3.75 Amp |
| Cycle rate | Exceeds 600 cycles per minute |
| Time range | 0.0001–999.9999 s |
| End-of-cycle feedback circuits | 24 VDC; 100 mA maximum |
| Cycle initiate | Foot pedal, finger switch, 24 VDC signal, or mechanical contact closure |
| Air output | UltimusPlus I: 0.7–7.0 bar (10–100 psi) UltimusPlus II: 0–1.0 bar (0.3–15 psi) |
| Warranty | 5 year, limited (Americas and Europe) 2 year, limited (Asia) |
| Approvals | CE, TUV, RoHS, WEEE, China RoHS |
