Nordson EFD ValveMate Dispense Valve Controllers
Part No.：7015340 7100 Valve Controller
Nordson EFD's ValveMate™ dispense valve controllers put push-button adjustment of valve open time where it needs to be — at the valve. Maximize automated assembly machine efficiency and convenience.
Nordson EFD's ValveMate™ dispense valve controllers put push-button adjustment of valve open time where it needs to be — at the valve. Maximize automated assembly machine efficiency and convenience.
ValveMate Dispense Valve Controllers
ValveMate controllers provide the primary control of deposit size. They are designed to bring fluid dispensing control close to the dispense valve and provide numerous user-friendly features that simplify valve setup and operation.
With control of the dispensing cycle close to the valve, there is less fluctuation therefore more consistent deposits.
Available Models
ValveMate 7100
Single-valve controller designed for semi-automated or fully automated dispensing applications, and features an internal control air solenoid.
ValveMate 8000
Multi-valve controller capable of operating up to four dispense valves independently or simultaneously, and features external control air solenoids.
ValveMate 9000
Dual-valve controller supports two independent channels that can drive remote high-speed solenoid valves and incorporates a heating system with spike-and-hold functionality.
Features
Compatible Valves
Part Numbers
For each ValveMate 8000 ordered, select the appropriate solenoid assembly for the number of valves used. Each solenoid kit includes the prewired 6 pin connector and housing, 3.6 m (12 ft) cable cordset, input air hose, and push-in fittings.
Order single or dual valve solenoid assemblies separately.
ValveMate controllers provide the primary control of deposit size. They are designed to bring fluid dispensing control close to the dispense valve and provide numerous user-friendly features that simplify valve setup and operation.
With control of the dispensing cycle close to the valve, there is less fluctuation therefore more consistent deposits.
Available Models
ValveMate 7100
Single-valve controller designed for semi-automated or fully automated dispensing applications, and features an internal control air solenoid.
ValveMate 8000
Multi-valve controller capable of operating up to four dispense valves independently or simultaneously, and features external control air solenoids.

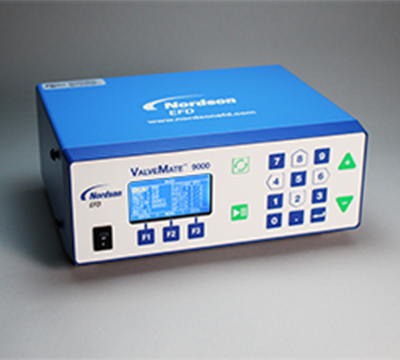

ValveMate 9000
Dual-valve controller supports two independent channels that can drive remote high-speed solenoid valves and incorporates a heating system with spike-and-hold functionality.
Features
- Maximum process control
- “On the fly” deposit adjustment
- Easily interfaced with a PLC
- Up to four programmable actuation channels
- Fast-response pneumatic solenoids
Compatible Valves
- 702 Mini-Diaphragm Valve
- 725 Piston Valve
- 725HF High-flow Piston Valve
- 736HPA High Pressure Valve
- 741V Needle Valve
- 741MD MicroDot™ Valve
- xQR41 MicroDot™ Valve
- xQR41V Needle Valve
- 745NC Square Wave™ Valve
- 752V Diaphragm Valve
- 752HF High-Flow Diaphragm Valve
- 754V Aseptic Valve
Part Numbers
| ValveMate Dispense Valve Controllers | ||
| Part # | Description | For use with |
| 7015340 | 7100 Valve Controller | 702, 725, 736HPA-NV, xQR41, 741, 752 Valves |
| 7022004 | 8000 Multi-Valve Controller* | 702, 725, 736HPA-NV, 741, 752 Valves |
| 7028693 | 9000 Valve Controller | 702, 725, 736HPA-NV, 741, 752 Valves |
| Solenoid Assemblies | ||
| Part # | Description | For use with |
| 7022246 | Single in-line solenoid for one valve operation | 8000 Multi-Valve Controller |
| 7022247 | Dual-solenoid block for two valve operation | 8000 Multi-Valve Controller |
| 7022248 | Tri-solenoid block for three valve operation | 8000 Multi-Valve Controller |
| 7022249 | Quad-solenoid block for four valve operation | 8000 Multi-Valve Controller |
