| Models |
CP1L-M60(60 points) |
CP1L-M40(40 points) |
CP1L-M30(30 points) |
CP1L-L20(20 points) |

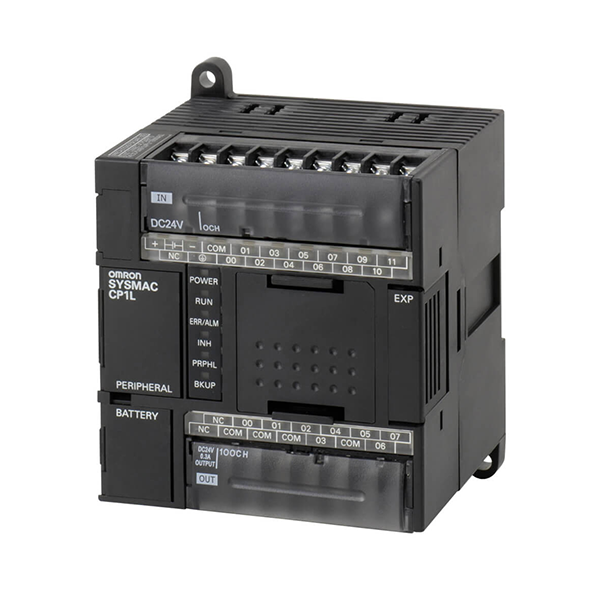

CP1L-L14(14 points) |
CP1L-L10(10 points) |
| |
CP1L-M60@@–@ |
CP1L-M40@@–@ |
CP1L-M30@@–@ |
CP1L-L20@@–@ |
CP1L-L14@@–@ |
CP1L-L10@@–@ |
| Control method |
Stored program method |
| I/O control method |
Cyclic scan with immediate refreshing |
| Program language |
Ladder diagram |
| Function blocks |
Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST) |
| Instruction length |
1 to 7 steps per instruction |
| Instructions |
Approx. 500 (function codes: 3 digits) |
| Instruction execution time |
Basic instructions: 0.55 ms min. Special instructions: 4.1 ms min. |
| Common processing time |
0.4 ms |
| Program capacity |
10K steps |
5K steps |
| Number of tasks |
288 (32 cyclic tasks and 256 interrupt tasks) |
| Maximum subroutine number |
256 |
| Maximum jump number |
256 |
| Work bits |
8,192 bits (512 words): W000.00 to W511.15 (W0 to W511)CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143) |
| TR Area |
16 bits: TR0 to TR15 |
| Holding Area |
8,192 bits (512 words): H0.00 to H511.15 (H0 to H511) |
| AR Area |
Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959) |
| Timers |
4,096 timer numbers: T0 to T4095 |
| Counters |
4,096 counter numbers: C0 to C4095 |
| DM Area |
32 Kwords: D0 to D32767 |
10 Kwords: D0 to D9999, D32000 to D32767 |
| Data Register Area |
16 registers (16 bits): DR0 to DR15 |
| Index Register Area |
16 registers (32 bits): IR0 to IR15 |
| Task Flag Area |
32 flags (32 bits): TK0000 to TK0031 |
| Trace Memory |
4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.) |
| Memory Cassette |
A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting. |
| Clock function |
Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C),-2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C) |
| Memory backup |
Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values.Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery. |
| Battery service life |
Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75 to 5 years depending on model, power supply rate, and ambient temperature.) |
