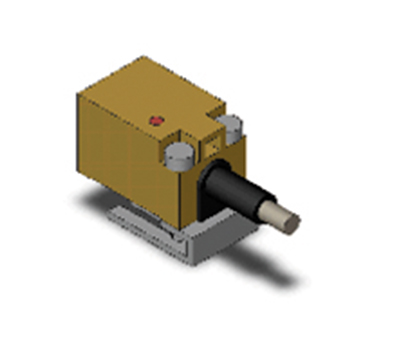

    Rectangular Standard Proximity Sensor OMRON TL-N5ME1 2M

    Unshielded, Square type, DC Three-wires models, Sensing distance 5 mm ±10%, NO, NPN, Pre-wired models

    Sensing head size 25 mm x 25.5 mm x 38.5 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 5 mm ±10%
    Setting distance 0 to 4 mm
    Operation mode NO



    Ratings/Performance

    Sensing head size 25 mm x 25.5 mm x 38.5 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 5 mm ±10%
    Setting distance 0 to 4 mm
    Differential distance 15% max. of sensing distance
    Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
    Standard sensing object Iron 30 x 30 x 1 mm
    Response frequency 500 Hz (Average value)
    Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
    Operating voltage range 10 to 30 VDC
    Current consumption at 12 VDC: 8 mA max.
    at 24 VDC: 15 mA max.
    Control output (Output type) NPN
    Control output (Switching capacity) at 12 VDC: 100 mA max.
    at 24 VDC: 200 mA max.
    Control output (Residual voltage) 1 V max. (at 200 mA load current)
    Indicator Detection indicator (red)
    Operation mode NO
    Protective circuit Reverse polarity protection
    Surge suppressor
    Ambient temperature (Operating) -25 to 70 ℃
    Ambient temperature (Storage) -25 to 70 ℃
    Ambient humidity (Operating) 35 to 95% RH
    Ambient humidity (Storage) 35 to 95% RH
    Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
    Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
    Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
    Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 500 m/s2 10 times each in X, Y, and Z directions
    Degree of protection IEC: IP67
    Company standard: Oil-proof
    Connection method Pre-wired models (2 m)
    Weight Package: Approx. 190 g
    Material Case: Heat-resistant ABS resin
    Sensing surface: Heat-resistant ABS resin
    Accessories Instruction manual, Mounting Bracket, Phillips mounting screw
    Dimensions
    B0242_TL-N5ME1_E

    Output circuit
    F1172_TL-N5ME_E
    Timing chart
    E00000535110

    Mutual interference
    F1211_TL-Q_E
    A: 80 mm min., B: 80 mm min.
    Different frequency
    A: 40 mm min., B: 40 mm min.

    Effects of surrounding metals
    F1237_TL-N_E
    A: 20 mm min., B: 23 mm min.

    Characteristic chart
    Sensing distance vs. size and material of sensing object
    E00000534928

    Sensing range
    E00000534936
    ​​​​​​​
