    Sensor

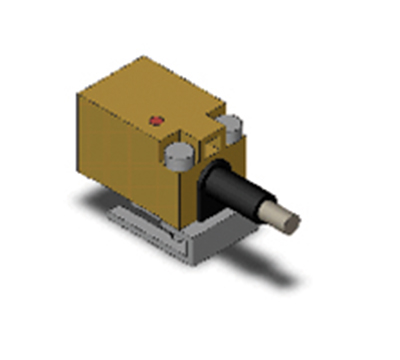

    Rectangular Standard Proximity Sensor OMRON TL-N7MD1 5M

    Unshielded, Square type, DC 2-wire models, Sensing distance 7 mm ±10%, NO, Pre-wired models

    Sensing head size 25 mm x 25.5 mm x 38.5 mm
    Type Square type, Unshielded
    Power source DC 2-wire models
    Sensing distance 7 mm ±10%
    Setting distance 0 to 5.6 mm
    Operation mode NO



    Ratings/Performance

    Sensing head size 25 mm x 25.5 mm x 38.5 mm
    Type Square type, Unshielded
    Power source DC 2-wire models
    Sensing distance 7 mm ±10%
    Setting distance 0 to 5.6 mm
    Differential distance 10% max. of sensing distance
    Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
    Standard sensing object Iron 30 x 30 x 1 mm
    Response frequency 500 Hz (Average value)
    Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
    Operating voltage range 10 to 30 VDC
    Leakage current 0.8 mA max.
    Control output (Switching capacity) 3 to 100 mA
    Indicator Operation indicator (red), Operation setting indicator (green)
    Operation mode NO
    Protective circuit Output short-cut protection
    Surge suppressor
    Ambient temperature (Operating) -25 to 70 ℃
    Ambient temperature (Storage) -25 to 70 ℃
    Ambient humidity (Operating) 35 to 95% RH
    Ambient humidity (Storage) 35 to 95% RH
    Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
    Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±15% range
    Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
    Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 1000 m/s2 10 times each in X, Y, and Z directions
    Degree of protection IEC: IP67
    Company standard: Oil-proof
    Connection method Pre-wired models (5 m)
    Material Case: Heat-resistant ABS resin
    Sensing surface: Heat-resistant ABS resin
    Accessories Instruction manual, Mounting Bracket, Phillips mounting screw
    Dimensions
    B0242_TL-N5ME1_E

    Output circuit
    F1172_TL-N12MD_E
    Timing chart
    E00000534950

    Mutual interference
    F1211_TL-Q_E
    A: 100 mm min., B: 120 mm min.
    Different frequency
    A: 50 mm min., B: 60 mm min.

    Effects of surrounding metals
    F1237_TL-N_E
    A: 40 mm min., B: 35 mm min.

    Characteristic chart
    Sensing distance vs. size and material of sensing object
    E00000534929

    Sensing range
    E00000534950
    ​​​​​​​
