    Sensor

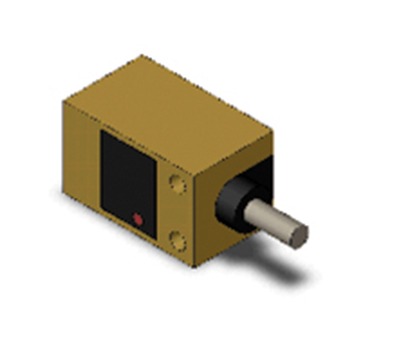

    Rectangular Standard Proximity Sensor OMRON TL-Q5MC1 2M

    Unshielded, Square type, DC Three-wires models, Sensing distance 5 mm ±10%, NO, NPN open collector, Pre-wired (robot cable)

    Sensing head size 17 mm x 17 mm x 28 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 5 mm ±10%
    Setting distance 0 to 4 mm
    Operation mode NO



    Ratings/Performance

    Sensing head size 17 mm x 17 mm x 28 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 5 mm ±10%
    Setting distance 0 to 4 mm
    Differential distance 10% max. of sensing distance
    Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
    Standard sensing object Iron 15 x 15 x 1 mm
    Response frequency 500 Hz (Average value)
    Response time 2 ms max.
    Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
    Operating voltage range 10 to 30 VDC
    Current consumption at 24 VDC: 10 mA max.
    Control output (Output type) NPN open collector
    Control output (Switching capacity) 50 mA max. (30 VDC max.)
    Control output (Residual voltage) 1 V max. (Load current 50 mA with cable length of 2 m)
    Indicator Detection indicator (red)
    Operation mode NO
    Protective circuit Reverse polarity protection
    Surge suppressor
    Ambient temperature (Operating) -25 to 70 ℃
    Ambient temperature (Storage) -25 to 70 ℃
    Ambient humidity (Operating) 35 to 95% RH
    Ambient humidity (Storage) 35 to 95% RH
    Temperature influence ±20% max. of sensing distance at 23 ℃ in the temperature range of −25 to 70 ℃
    Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
    Insulation resistance Between charged parts and the case: 5 MΩ min. (at 500 VDC)
    Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 200 m/s2 10 times each in X, Y, and Z directions
    Degree of protection IEC: IP67
    Connection method Pre-wired models (2 m)
    Material Case: Heat-resistant ABS resin
    Sensing surface: Heat-resistant ABS resin
    Dimensions
    B0242_TL-Q5MB1_E

    Output circuit
    F1172_TL-Q2MC_E
    Timing chart
    E00000534748

    Mutual interference
    F1211_TL-Q_E
    A: 60 mm min., B: 120 mm min.
    Different frequency
    A: 17 mm min., B: 60 mm min.

    Effects of surrounding metals
    F1237_TL-Q_E
    A: 20 mm min., B: 20 mm min.

    Characteristic chart
    Sensing distance vs. size and material of sensing object
    E00000534948

    Sensing range
    E00000535275
