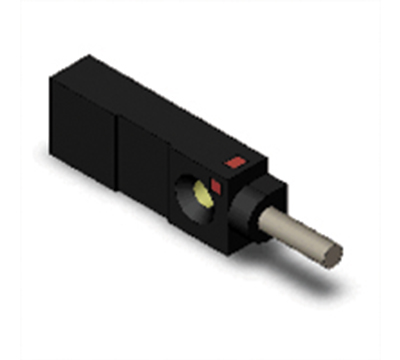

    Flat Inductive Proximity Sensor OMRON TL-W3MC2 5M

    Unshielded, Square type, DC Three-wires models, Sensing distance 3 mm ±10%, NC, NPN open collector, Pre-wired models

    Sensing head size 10 mm x 6 mm x 27 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 3 mm ±10%
    Setting distance 0 to 2.4 mm
    Operation mode NC



    Ratings/Performance

    Sensing head size 10 mm x 6 mm x 27 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 3 mm ±10%
    Setting distance 0 to 2.4 mm
    Differential distance 10% max. of sensing distance
    Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
    Standard sensing object Iron 12 x 12 x 1 mm
    Response frequency 600 Hz (Average value)
    Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
    Operating voltage range 10 to 30 VDC
    Current consumption at 24 VDC, no load: 15 mA max.
    Control output (Output type) NPN open collector
    Control output (Switching capacity) 100 mA max. (30 VDC max.)
    Indicator Detection indicator (red)
    Operation mode NC
    Protective circuit Reverse polarity protection
    Surge suppressor
    Ambient temperature (Operating) -25 to 70 ℃
    Ambient temperature (Storage) -25 to 70 ℃
    Ambient humidity (Operating) 35 to 95% RH
    Ambient humidity (Storage) 35 to 95% RH
    Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
    Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
    Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
    Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
    Degree of protection IEC: IP67
    Company standard: Oil-proof
    Connection method Pre-wired models (5 m)
    Material Case: Heat-resistant ABS resin
    Sensing surface: Heat-resistant ABS resin
    Accessories Instruction manual, Mounting Bracket
    Dimensions
    C032_TL-W3MB_E

    Output circuit
    F1172_TL-W_MC_E
    Timing chart
    E00000534734

    Mutual interference
    F1211_TL-W
    A: 90 mm min., B: 30 mm min.
    Different frequency
    A: 60 mm min., B: 10 mm min.
    Effects of surrounding metals
    E00000535442
    l: 3 mm min., m: 0 mm min., n: 12 mm min.​​​​​​​
