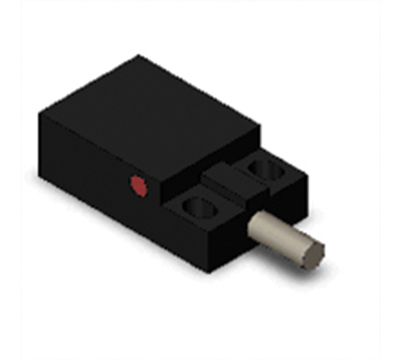

    Flat Inductive Proximity Sensor OMRON TL-W5MC1 5M

    Unshielded, Square type, DC Three-wires models, Sensing distance 5 mm ±10%, NO, NPN open collector, Pre-wired models

    Sensing head size 18 mm x 10 mm x 30.5 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 5 mm ±10%
    Setting distance 0 to 4 mm
    Operation mode NO
    Ratings/Performance

    Sensing head size 18 mm x 10 mm x 30.5 mm
    Type Square type, Unshielded
    Power source DC Three-wires models
    Sensing distance 5 mm ±10%
    Setting distance 0 to 4 mm
    Differential distance 10% max. of sensing distance
    Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
    Standard sensing object Iron 18 x 18 x 1 mm
    Response frequency 500 Hz (Average value)
    Power supply voltage 12 to 24 VDC ripple (p-p) 10% max.
    Operating voltage range 10 to 30 VDC
    Current consumption 10 mA max.
    Control output (Output type) NPN open collector
    Control output (Switching capacity) at 12 VDC: 50 mA max. (30 VDC max.)
    at 24 VDC: 100 mA max. (30 VDC max.)
    Indicator Detection indicator (red)
    Operation mode NO
    Protective circuit Reverse polarity protection
    Surge suppressor
    Ambient temperature (Operating) -25 to 70 ℃
    Ambient temperature (Storage) -25 to 70 ℃
    Ambient humidity (Operating) 35 to 95% RH
    Ambient humidity (Storage) 35 to 95% RH
    Temperature influence ±10% max. of sensing distance at 23 ℃ in the temperature range of -25 to 70 ℃
    Voltage influence ±2.5% max. of sensing distance at rated voltage in the rated voltage ±20% range
    Insulation resistance Between charged parts and the case: 5 MΩ min. at 500 VDC
    Dielectric strength Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
    Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
    Shock resistance Destruction: 500 m/s2 3 times each in X, Y and Z directions
    Degree of protection IEC: IP67
    Company standard: Oil-proof
    Connection method Pre-wired models (5 m)
    Material Case: Heat-resistant ABS resin
    Sensing surface: Heat-resistant ABS resin
    Accessories Instruction manual


    Output circuit
    F1172_TL-W_MC_E
    Timing chart
    E00000534748
    Mutual interference
    F1211_TL-W
    A: 120 mm min., B: 60 mm min.
    Different frequency
    A: 80 mm min., B: 30 mm min.

    Effects of surrounding metals
    E00000535442
    l: 5 mm min., m: 0 mm min., n: 20 mm min.

    Characteristic chart
    Sensing distance vs. size and material of sensing object
    E00000534963
    Sensing range
    E00000534972
